02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

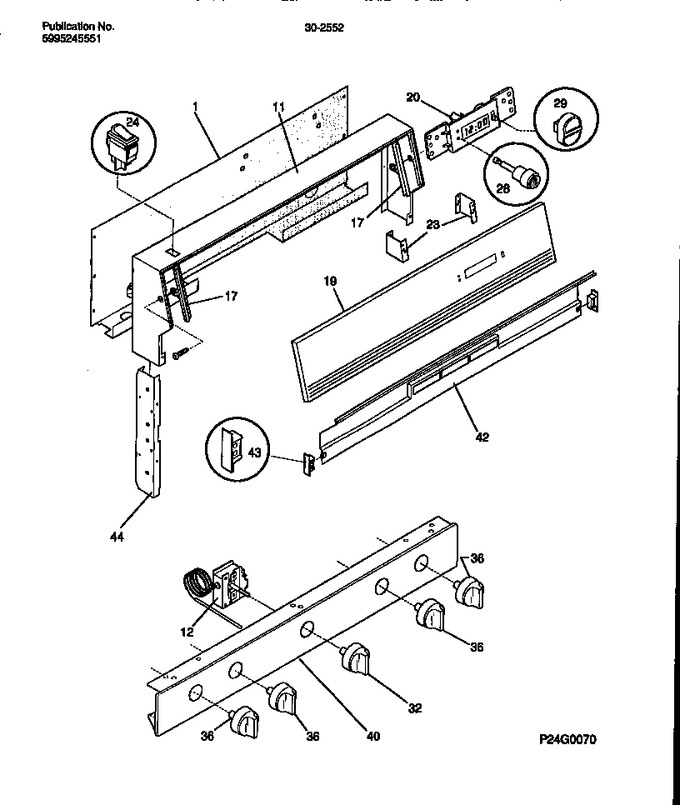

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3160522083		Shield-background, Real Wall		Appelez-nous	-
11	316056600		Trim-wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
17	5303283987		Trim-glass Retainer, (2)		Appelez-nous	-
19	5303281645		Trim-glass Retainer,(2)		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
23	5303281646		Bracket-clock Mtg, (2)		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	5303281617		Lmpb-thermostat		Appelez-nous	-
36	3204869		Knob-top Valve, (4)		Appelez-nous	-
40	5303271189		Panel-manifold		Appelez-nous	-
42	5303281630		Trimm-vent		Appelez-nous	-
43	5303283983		End Cap,backguard,(2)		Appelez-nous	-
44	5303283981		Bracket-backguard, (2)		Appelez-nous	-
12A	5303291898		Insulator-thermostat, (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
