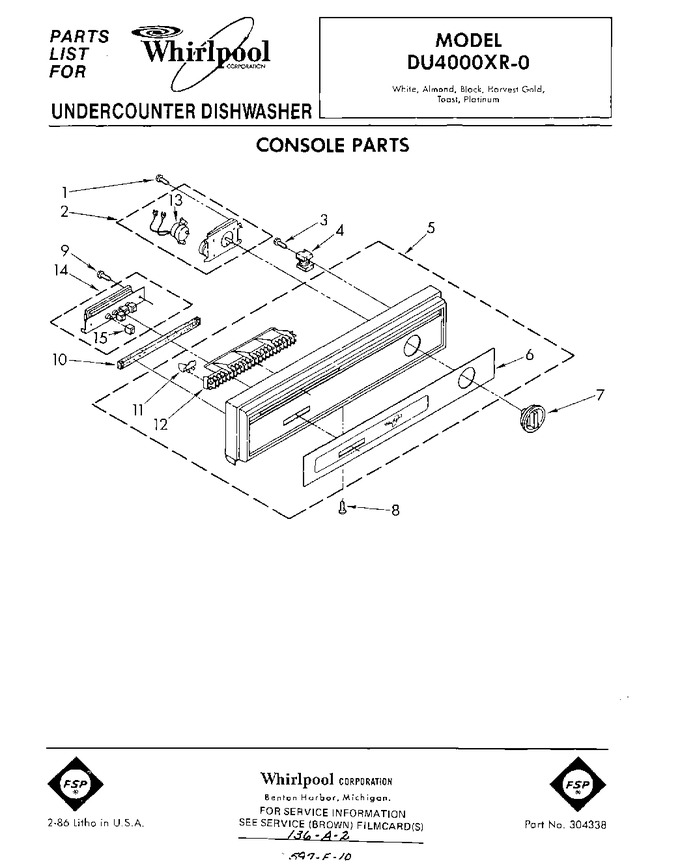

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (3)   (Replaces: 304231)			Immediately	$ 6.98
2	304459		Timer		Appelez-nous	-
3	304232		Screw, 7-18 X 1-3/8 Slot Hex Wash Hd		Appelez-nous	-
4	304409		Relay, Start		Appelez-nous	-
5	304607		Console		Appelez-nous	-
6	304539		Insert, Decorative		Appelez-nous	-
7	304435		Knob, Timer		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2 Hi-lo (2)   (Replaces: 304234)			Immediately	$ 7.01
9	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (2)   (Replaces: 304231)			Immediately	$ 6.98
10	719860		Baffle		Appelez-nous	-
11	304425		Cover, Grill		Appelez-nous	-
12	304424		Grill, Vent		Appelez-nous	-
13	301074		Motor, Timer		Appelez-nous	-
14	304457		Switch, Pushbutton		Appelez-nous	-
15	304455		Pushbutton		Appelez-nous	-
