01 - Cover Sheet


02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram

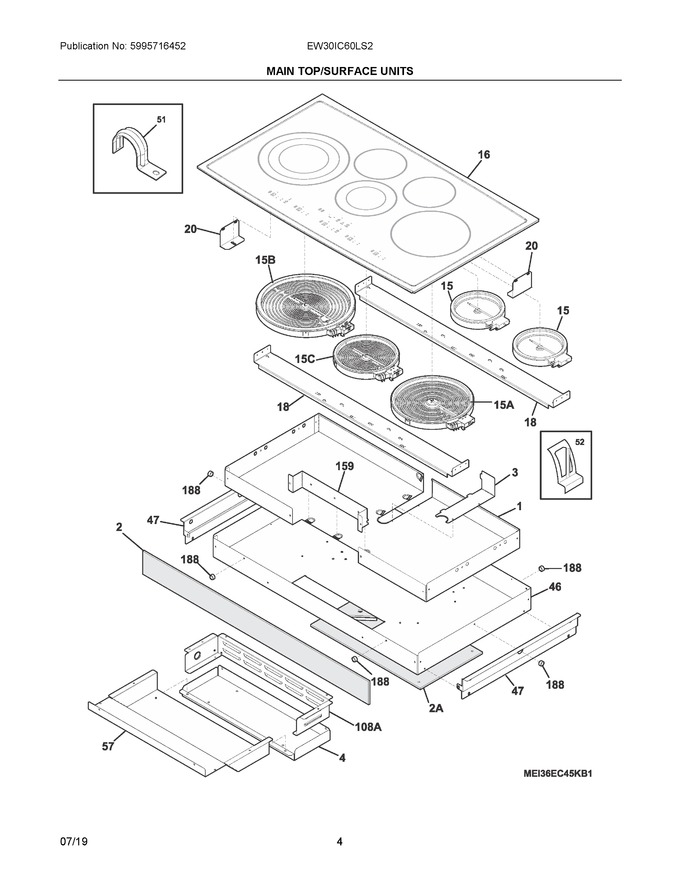

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318533829		Panel, Mounting		Appelez-nous	-
2	318330575		Insulation, Carrier Panel		Appelez-nous	-
6	318405000		Pin, Guide, Elements, (12)				$ 19.38
7	318534300		Spring, Guide Pin, (12)				$ 7.09
10	318534000		Deflector, Outer		Appelez-nous	-
11	318381731		Deflector, Air		Appelez-nous	-
12	318577902		Shield, Emi		Appelez-nous	-
15	318329241		Element, Induction Coil, 140mm				$ 229.03
16	318935225		Main Top Assy, Glass, Black/stainless, Complete, W/control Board				$ 1,664.60
20	318121915		Bracket, Retainer, (2)				$ 18.64
46	318225457		Box, Burner		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 12.76
52	318560900		Spacer, Spring, (8)				$ 14.18
58	318330576		Insulation, Service Panel		Appelez-nous	-
15A	318329242		Element, Induction Coil, 180mm				$ 268.46
15B	318329243		Element, Induction Coil, 210mm				$ 312.44
15C	318329244		Element, Induction Coil, 260mm				$ 363.59
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	73218-3010		Foam Tape, 3/8   (Replaces: 5303323177)				$ 45.36
NI	5304424462		Foam Tape, 1/2" X 14			Immediately	$ 69.77
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	08016432		Screw, Truss Head, 8-18 X 3/8", (7)		Appelez-nous	-
NI	5304522490		Harness, Main Wiring, Power Supply		Appelez-nous	-
NI	316459400		Pad, Cleaning		Appelez-nous	-
