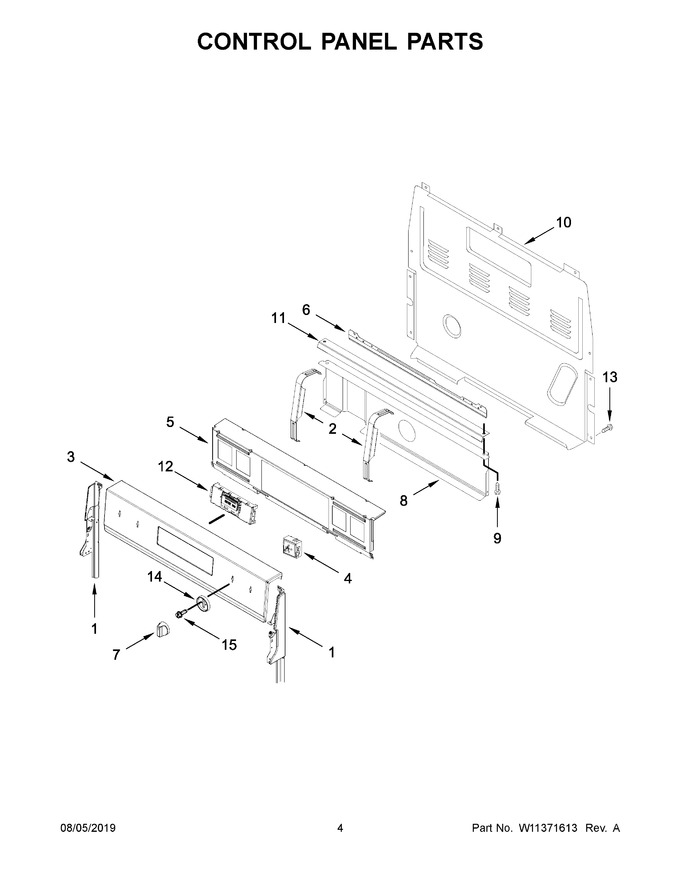

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 298.09 | |||||
| 2 | W10856361 | Bracket, Control |
|
- | |||||
| 3 | W11105836 | Console (black) (Replaces: W10869983) |
|
- | |||||
| 4 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 190.52 | ||||
| 5 | W10901802 | Panel, Backer |
|
$ 80.93 | |||||
| 6 | W11443964 | Bracket, Eye Brow (black) (Replaces: W11051312) |
|
$ 190.66 | |||||
| 7 | W11715915 | Knob (black) (Replaces: W10905965) |
|
$ 36.39 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 12 | W11536793 | Control, Electronic (lcx) (black) (Replaces: W10885938) |
|
Immediately | $ 248.05 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | W10905964 | Bezel (black) |
|
- | |||||
| 15 | W11846982 | Screw (Replaces: W10498399) |
|
- | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 61.42 | |||||
| 4A | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 |
