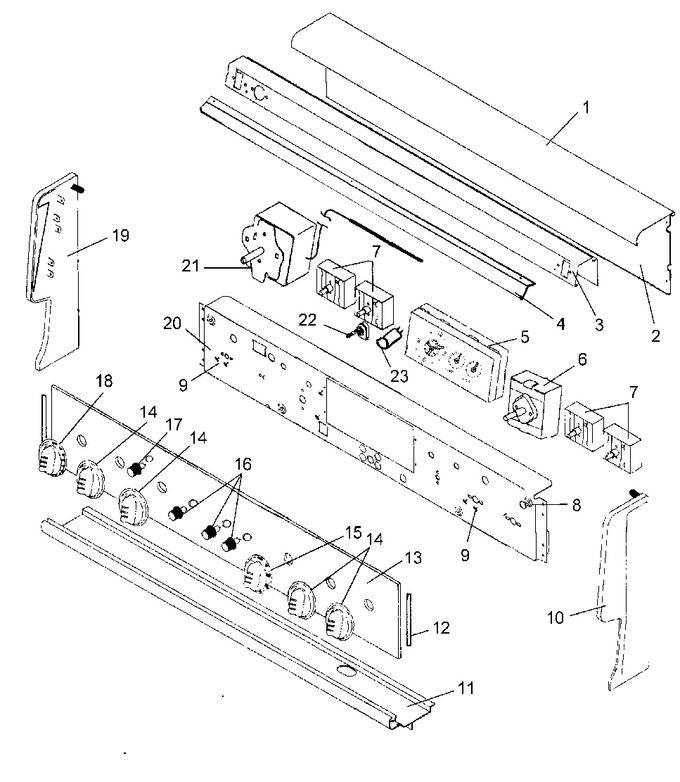

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304955B		Trim, Top Backguard (blk)		Appelez-nous	-
2	0309137		Cover, Backguard		Appelez-nous	-
3	307211B		Bracket, Light		Appelez-nous	-
4	314934W		Shield, Light (wht)		Appelez-nous	-
5	Y0305503		Clock, Analog		Appelez-nous	-
6	Y0306937		Switch, Selector 5 Pos.		Appelez-nous	-
7	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
8	Y0063661		Bumper, Oven Door		Appelez-nous	-
9	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
10	306397B		End Caps, Bkgd Rh		Appelez-nous	-
11	314603B		Trim, Lower Bkgd (blk)		Appelez-nous	-
12	0305309		Channel Glass (blk)		Appelez-nous	-
13	0306226		Glass, Backguard		Appelez-nous	-
14	315122B		Knob, Inf. Switch		Appelez-nous	-
15	315121B		Knob, Selector		Appelez-nous	-
16	308955B		Knob, Clock		Appelez-nous	-
17	306674B		Knob, Light Switch (blk)		Appelez-nous	-
18	315123B		Knob, Thermostat		Appelez-nous	-
19	306396B		End Caps, Bkgd Lh		Appelez-nous	-
20	Y0309723		Panel, Control		Appelez-nous	-
21	Y0063416		Thermostat		Appelez-nous	-
22	Y0306673		Switch, Oven Light, Rotary		Appelez-nous	-
23	Y0305660		Light, Indicator (red)		Appelez-nous	-
	NOTE:		Notes: Clear Light Diffuser Can Be Used In Place Of Light Shield(314934b, L, W).		Appelez-nous	-
NI	0065051		Bezel, Panel Switch		Appelez-nous	-
NI	Y0065052		Speednut		Appelez-nous	-
NI	Y0306401		Bracket, Clock		Appelez-nous	-
NI	0306589		Support, Bkgd (lh)		Appelez-nous	-
NI	0314373		Hinge, Strap		Appelez-nous	-
NI	Y0076175		Nut		Appelez-nous	-
NI	0306590		Support, Bkgd (rh)		Appelez-nous	-
