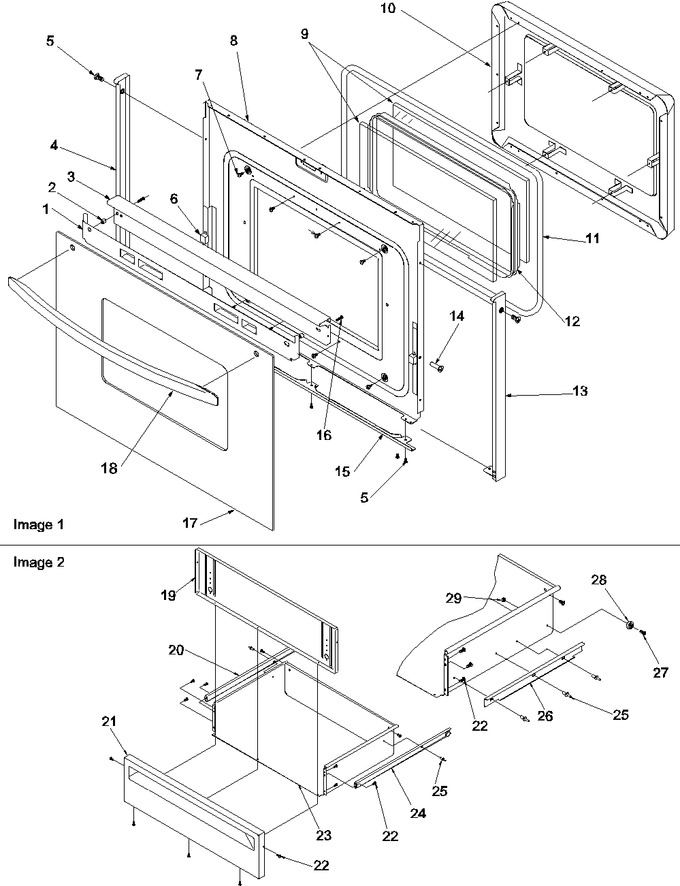

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316981B		Assy, Glass Heat Shield		Appelez-nous	-
2	309461B		Bushing, Handle (blk)		Appelez-nous	-
3	316980B		Trim, Door Top		Appelez-nous	-
4	309458B		End Cap, Lt (blk)		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
6	Y0309627		Bumper, Rubber		Appelez-nous	-
7	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
8	316242CG		Backer, Oven Door (sm Window)		Appelez-nous	-
9	0316226		Glass, Dbl Coated		Appelez-nous	-
10	316229CG		Pad, Door (enameled)		Appelez-nous	-
11	31715902		Gasket, Oven Door (67``)				$ 13.97
12	0316228		Frame, Window Pack		Appelez-nous	-
13	309457B		End Cap, Rt (blk)		Appelez-nous	-
14	Y0302648		Rivet, Pop		Appelez-nous	-
15	309460B		Support, Glass (blk)		Appelez-nous	-
16	Y0316239		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
17	315943B		Glass, Oven Door		Appelez-nous	-
18	316792B		Handle, Door (blk)		Appelez-nous	-
19	309179B		Liner, Drawer Panel (blk)		Appelez-nous	-
20	0314664		Runner Storage Dwr-lh		Appelez-nous	-
21	309177W		Panel, Drawer (wht)		Appelez-nous	-
22	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
23	316253W		Drawer, Storage (wht)		Appelez-nous	-
24	Y0314665		Runner Storage Dwr-rh		Appelez-nous	-
25	Y0076357		Rivet, Pop		Appelez-nous	-
NI	0043184		Tape, Foam		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
NI	0062614		Insulation,door-sub Backer		Appelez-nous	-
NI	31750707		Screw, No.8-18 X 1/2 Washer Hd		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
