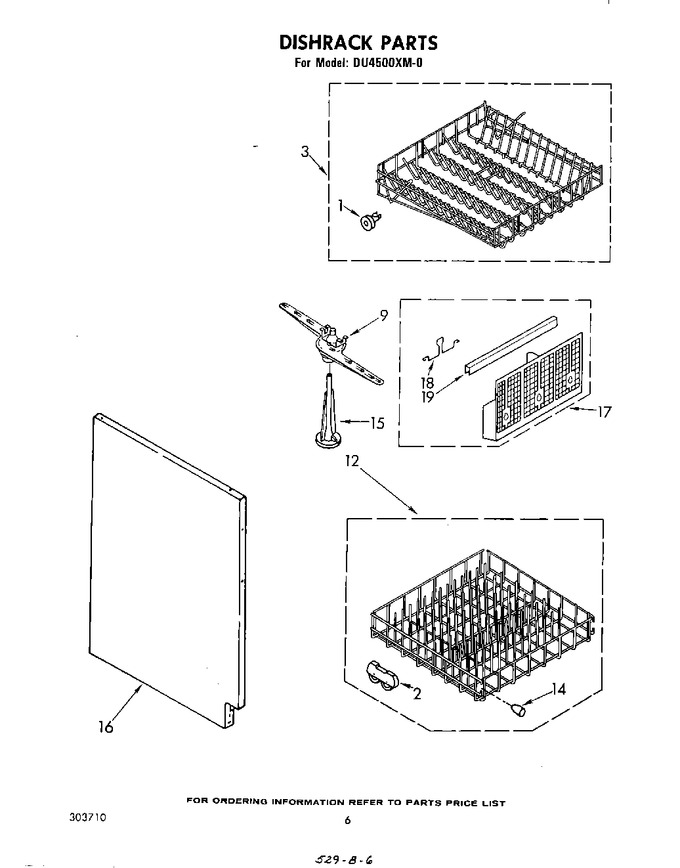

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Axle Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Shroud Assembly (4)   (Replaces: 717509)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 302986)			Immediately	$ 182.83
9	302813		Spray Arm Assembly		Appelez-nous	-
12	W10311986		Dishrack, Lower   (Replaces: 303357)			Immediately	$ 169.33
14	W10410999		Bumper   (Replaces: 303358)			Immediately	$ 166.30
15	302030		Tower		Appelez-nous	-
17	302994		Silverware		Appelez-nous	-
17	301994		Silverware Basket		Appelez-nous	-
18	300086		Handle, Basket		Appelez-nous	-
19	717528		Trim, Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
