SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness

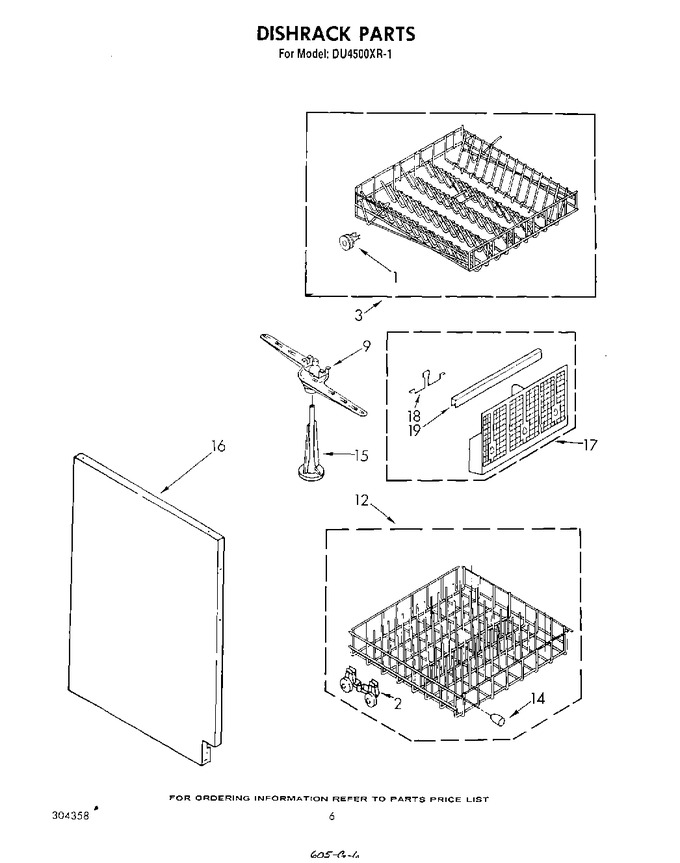

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Axle Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Carrier Assembly (4)   (Replaces: 303991)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 304187)			Immediately	$ 182.83
9	304204		Spray Arm Assembly				$ 67.61
12	W10311986		Dishrack, Lower   (Replaces: 304176)			Immediately	$ 169.33
14	304490		Bumper		Appelez-nous	-
15	304170		Tower				$ 72.38
16	N/A		Panel, R.s.		Appelez-nous	-
17	304166		Silverware Basket		Appelez-nous	-
18	300086		Handle, Basket		Appelez-nous	-
19	717528		Trim, Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
