View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Console
02 - Tub , Literature And Optional
03 - Door
04 - Dishrack
05 - Heater, Pump And Lower Sprayarm
06 - 3367443 Pump And Motor
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:

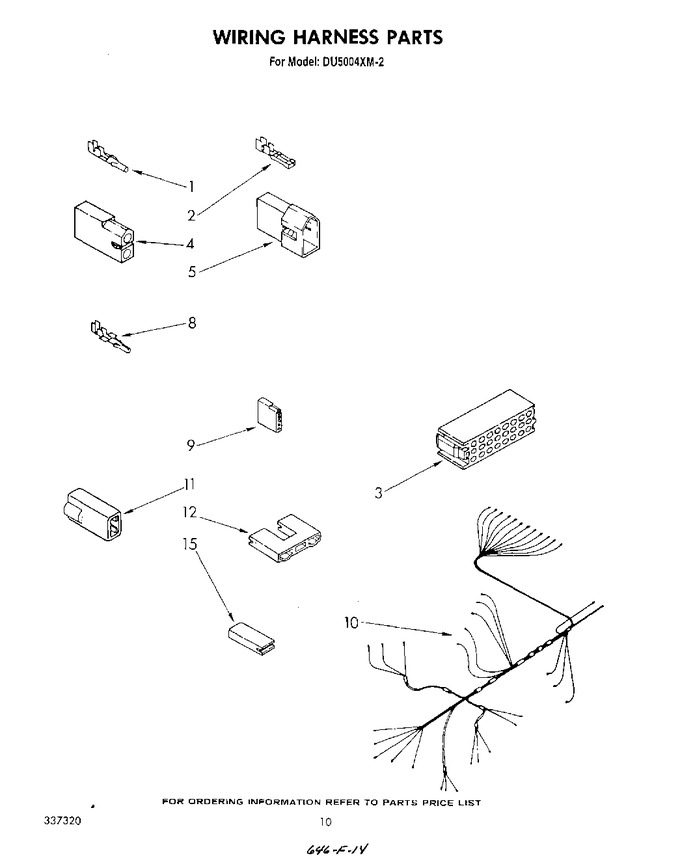

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 2 | 304759 | Terminal, Female |
|
- | |||||
| 3 | 304758 | Disconnect Block, Timer |
|
- | |||||
| 4 | 717252 | Receptacle, Terminal (2-way) |
|
- | |||||
| 5 | 717253 | Plug, Terminal |
|
- | |||||
| 8 | 94613 | Terminal |
|
- | |||||
| 9 | 719585 | Receptacle (5-circuit) |
|
- | |||||
| 10 | 3367003 | Harness, Wiring |
|
- | |||||
| 11 | 358736 | Terminal, Insulator |
|
- | |||||
| 12 | 300708 | Connector, Block (alternate) |
|
- | |||||
| 12 | 374230 | Connector Block (alternate) |
|
- | |||||
| 15 | 301219 | Connector Block |
|
- |
