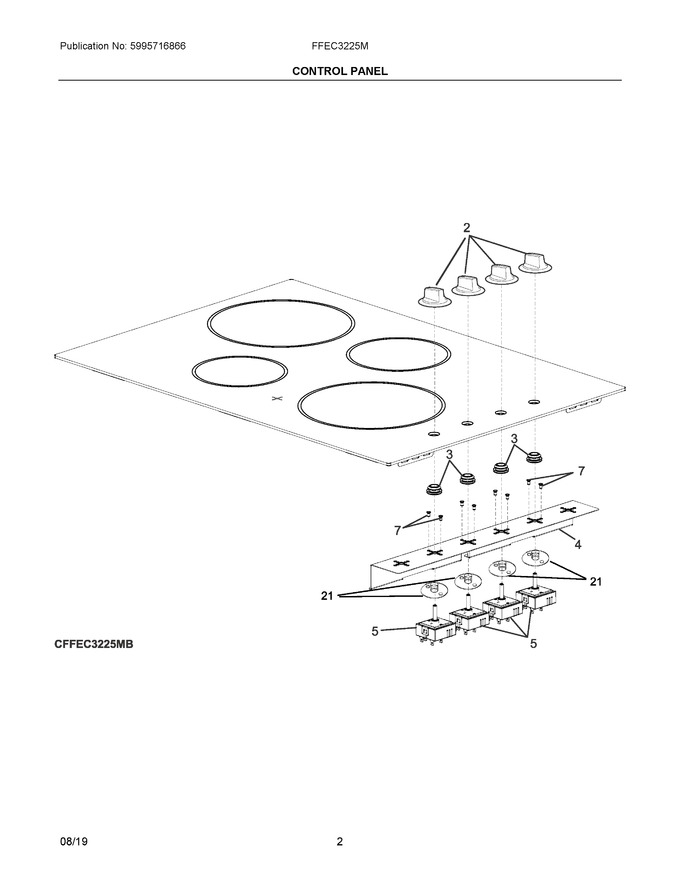

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316544006 | Knob, Control, White |
|
$ 152.38 | |||||
| 3 | 387316100 | Bushing, Knob, Sealing |
|
$ 13.46 | |||||
| 4 | 305543100 | Bracket, Support, Switch Mtg |
|
- | |||||
| 5 | 5304526190 | Switch, Infinite, Single Control (Replaces: 305458905) |
|
Immediately | $ 90.50 | ||||
| 7 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 21 | 318146010 | Bushing, Switch |
|
$ 17.16 |
