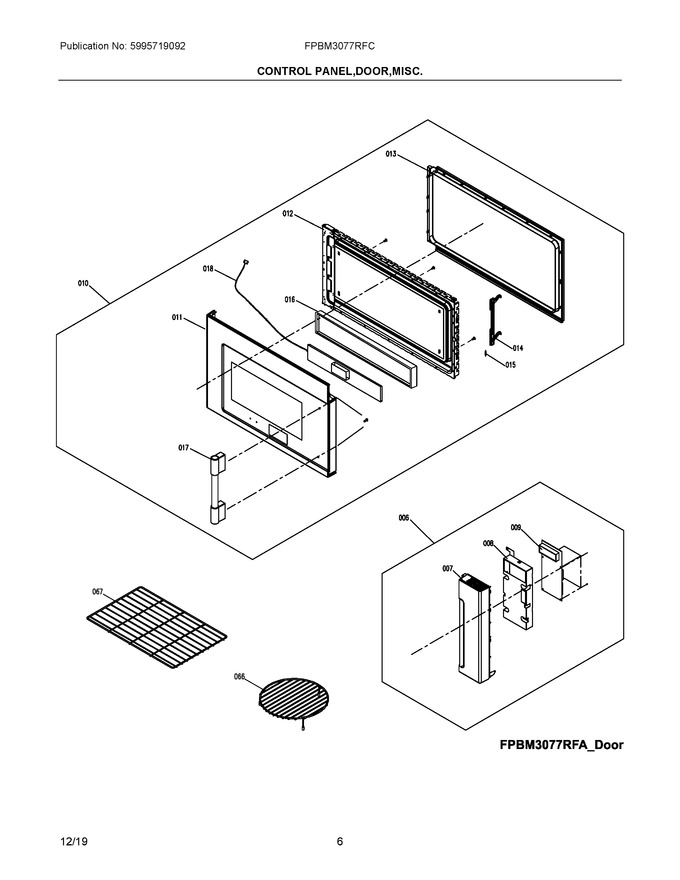

03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304521572		Control Assembly, Stainless, Complete				$ 408.92
7	5304521573		Frame, Control Panel				$ 165.56
8	5304491499		Panel, Control Mount, Bracket				$ 82.93
9	5304504070		Pc Board, Main, Control/power				$ 330.98
10	5304504071		Door Assembly, Stainless, W/pcb				$ 982.27
11	5304521574		Panel Assembly, Outer Door, Stainless				$ 395.46
12	5304488350		Panel, Inner Door				$ 282.79
13	5304513453		Frame, Choke Cover, Inner Door   (Replaces: 5304488351)				$ 52.78
14	5304525298		Latch, Door   (Replaces: 5304509432)			Immediately	$ 10.85
15	5304521953		Spring, Door Latch   (Replaces: 5304464069)				$ 7.23
16	5304499873		Frame, Display Board, Cover				$ 67.33
17	5304521575		Handle Assembly, Door, Stainless				$ 242.95
18	5304504072		Pc Board, Display/input			Immediately	$ 294.84
66	5304523266		Rack, Round, Wire, 3-leg   (Replaces: 5304499601)				$ 80.96
67	5304488392		Shelf, Wire				$ 237.12
