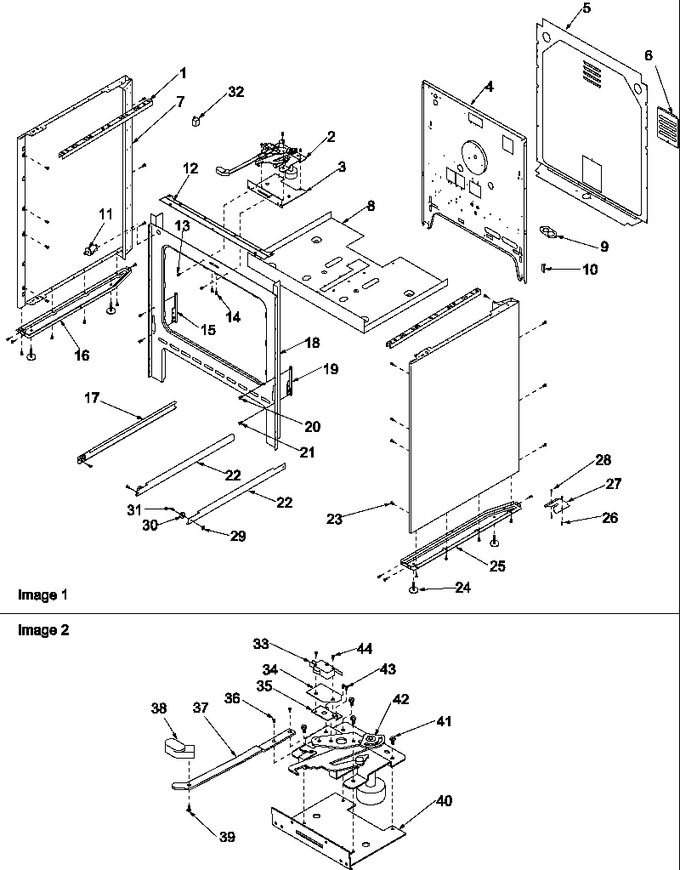

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0304019		Channel, Broil Burner		Appelez-nous	-
2	Y00000000		See Note Latch,oven Door - Elec -- (see Image 2)		Appelez-nous	-
3	Y00000000		See Note Bracket,latch Mounting -- (see Image 2)		Appelez-nous	-
4	Y0316960		Retainer, Rear (elec)		Appelez-nous	-
5	Y0307342		Cover, Rear		Appelez-nous	-
6	Y0058435		Access Plate, Rear		Appelez-nous	-
7	317036L		Panel, Side (alm)		Appelez-nous	-
8	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
9	0058311		Plate, Main Inlet Wire		Appelez-nous	-
11	Y0314367		Switch, Oven Light		Appelez-nous	-
12	Y0314891		Brkt, Maintop (painted)		Appelez-nous	-
13	31750707		Screw, No.8-18 X 1/2 Washer Hd		Appelez-nous	-
14	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
15	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
16	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
17	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
18	Y00000000		See Note Frontframe,s/c W/light -- (not Field Replacable)		Appelez-nous	-
19	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
20	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
21	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
22	0314663		Track, Storage Dwr Rh		Appelez-nous	-
23	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
24	314187B		Leg,leveling Xxx		Appelez-nous	-
25	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
26	Y0301555		Anchor, Plastic		Appelez-nous	-
27	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
28	Y0041813		Screw Cabinet Trim		Appelez-nous	-
32	Y0317033		Relay		Appelez-nous	-
33	Y0065780		Switch, Clean Circuit				$ 11.77
34	Y0091523		Insulation, Esm		Appelez-nous	-
35	Y0302316		Bracket, Switch		Appelez-nous	-
36	WP4159193		Screw, No.10-24x1/4 (pan Ph Hd)   (Replaces: 31750501)				$ 4.29
37	303039L		Latch Arm		Appelez-nous	-
38	306830L		Handle, Latch		Appelez-nous	-
39	31750306		Screw, No.6-32 X .375 Flat Hd Ph		Appelez-nous	-
40	Y0315910		Bracket, Latch Mounting		Appelez-nous	-
41	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
42	31719901		Latch, Oven Door (elec)		Appelez-nous	-
43	Y0092365		Screw 4-40x1		Appelez-nous	-
44	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
