SELECT A DIAGRAM

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door And Storage Drawer

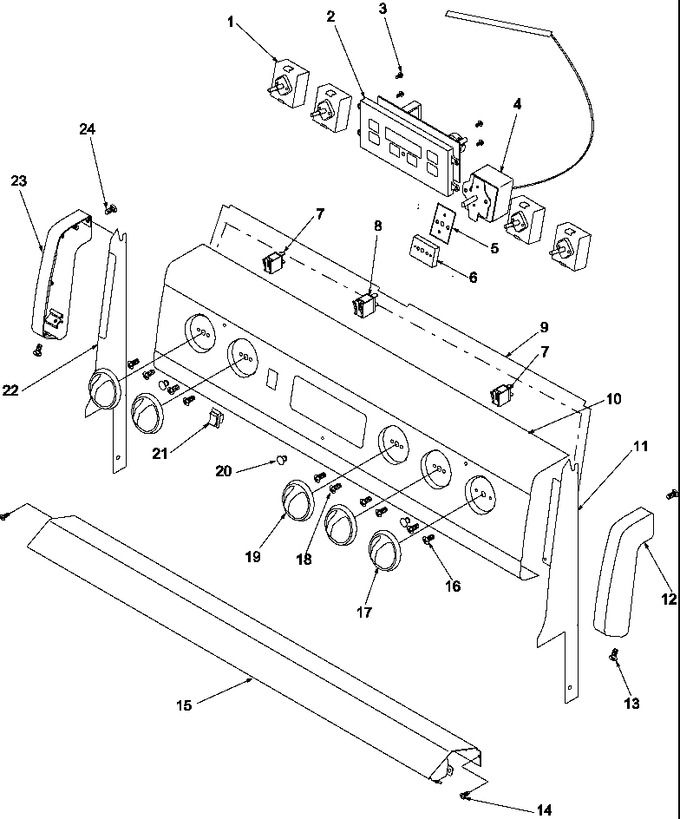

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
2	315568B		Clock, Clean W/overlay		Appelez-nous	-
3	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
4	Y0316972		Thermostat, Sc Elec		Appelez-nous	-
7	31722801		Light, Indicator (125v)		Appelez-nous	-
8	31722802		Light, Indicator (250v)		Appelez-nous	-
9	0315887		Cover, Upper Rear		Appelez-nous	-
10	316590B		Panel,clock		Appelez-nous	-
11	315876B		Bkgd. Support-rh		Appelez-nous	-
12	WP315841B		End Cap Rh   (Replaces: 315841B)				$ 53.06
13	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-
14	Y0041807		Screw No.8abx1/4 Ph Hd		Appelez-nous	-
15	31722702		Shield, Bkgd Trim Heat		Appelez-nous	-
16	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
17	315845B		Knob, Infinite Sw (black)		Appelez-nous	-
18	31750713		Screw, No.8-32 X 7/8		Appelez-nous	-
19	315968B		Knob, Thermostat (blk)		Appelez-nous	-
20	Y0316265		Lens, Indicator		Appelez-nous	-
21	Y0063997		Switch, Rocker		Appelez-nous	-
22	315877B		Bkgd. Support-lh		Appelez-nous	-
23	WP315843B		End Cap Lh   (Replaces: 315843B)				$ 52.60
24	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	0041801		Screw No.8-18x.375 Ab		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
