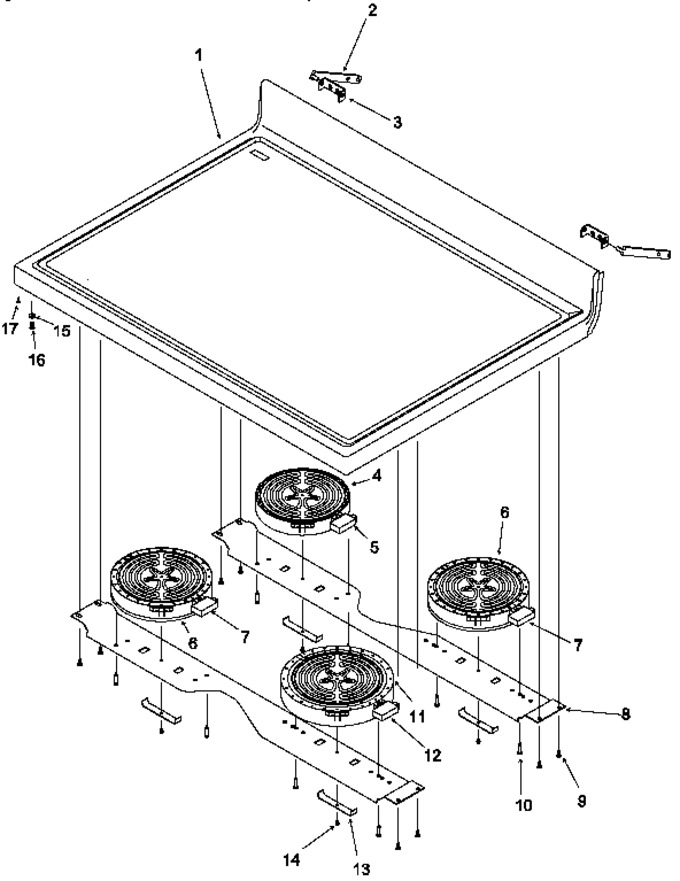

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316734WW		Assy, Top & Glass		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
5	0316686		Limiter (1200 Watts)		Appelez-nous	-
6	W10823699		Element, Ribbon (1500 Watts)   (Replaces: Y0314911)			Immediately	$ 145.67
7	0316687		Limiter (1500 Watts)		Appelez-nous	-
8	Y0316248		Brkt, Element		Appelez-nous	-
9	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	Y0316569		Screw, Shoulder		Appelez-nous	-
11	W10823708		Element, Ribbon (2000 Watts)   (Replaces: Y0314912)				$ 307.60
12	0316688		Limiter (2000 Watts)		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
17	31717001		Spacer, Snap-in		Appelez-nous	-
NI	Y0307456		Clamp, Tube (1/2``)		Appelez-nous	-
NI	Y0316502		Harness, Wire (radiant Elem Lh		Appelez-nous	-
NI	Y0316505		Harness, Element		Appelez-nous	-
NI	Y0076035		Screw, No.8-18 X 7/8 Pph		Appelez-nous	-
NI	0307062		Clip		Appelez-nous	-
