Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP94614 Terminal (female)   (Replaces: 94614) Special Order $ 6.90

2 352088 Terminal, Female Special Order $ 5.83

3 353425 Recptacle, Terminal, 3 Way Appelez-nous -
8 94613 Terminal Appelez-nous -
9 719585 Receptacle (5-circuit) Appelez-nous -
10 304503 Harness, Wiring Appelez-nous -
11 358736 Terminal, Insulator Appelez-nous -
12 374230 Connector Block (alternate) Appelez-nous -
12 300708 Connector, Block (alternate) Appelez-nous -
15 301219 Connector Block Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

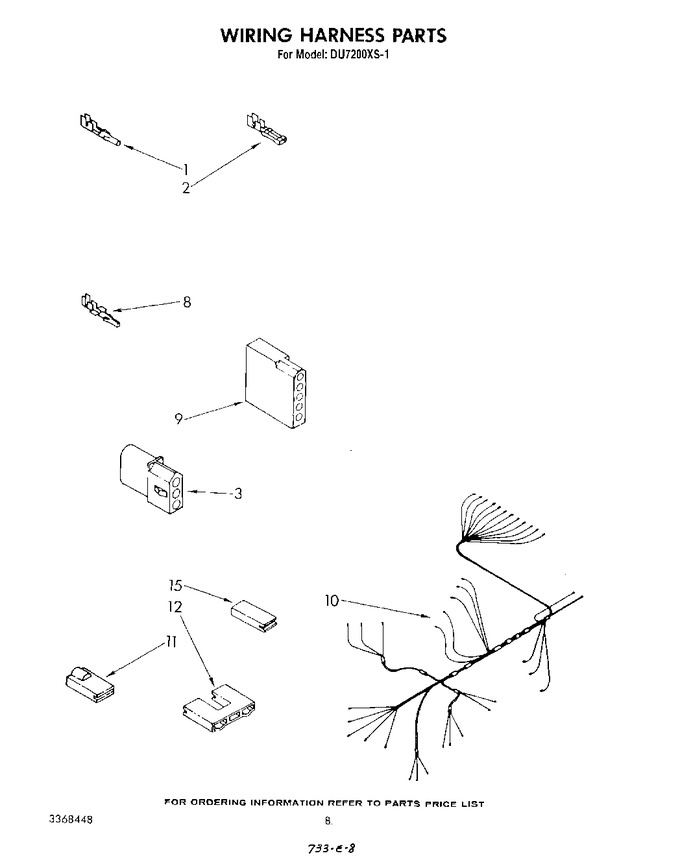

Diagram for DU7200XS1
