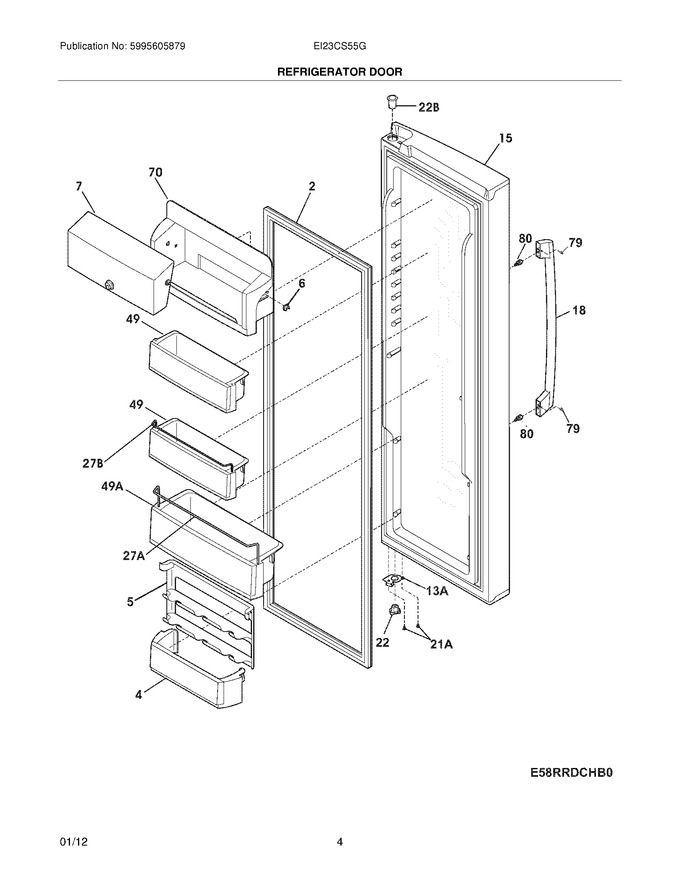

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	241751401		Bin-door,pseudo ,bottom				$ 100.07
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241749201		Door-dairy				$ 70.31
15	241837219		Door-refr,stainless ,complete Assy				$ 466.27
18	241761010		Handle		Appelez-nous	-
22	241760501		Bearing-hinge,black ,lower				$ 16.02
49	241750501		Bin-door,2-liter				$ 127.30
70	241749301		Compartment-dairy,removable				$ 74.47
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	241942601		Door Stop,black				$ 37.22
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13
27A	241752802		Retainer-bottle				$ 34.17
27B	241752803		Retainer-bottle,2 Liter				$ 17.16
49A	241750201		Bin-door,gallon				$ 121.77
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
NI	241601002		Wrench,allen		Appelez-nous	-
NI	5304453707		Screw   (Replaces: 241641501)			Immediately	$ 15.92
NI	241836201		Divider-dairy Compt		Appelez-nous	-
NI	241836401		Latch-door				$ 18.43
NI	241836301		Knob-dairy Door				$ 38.98
