SELECT A DIAGRAM

01 - Cabinet

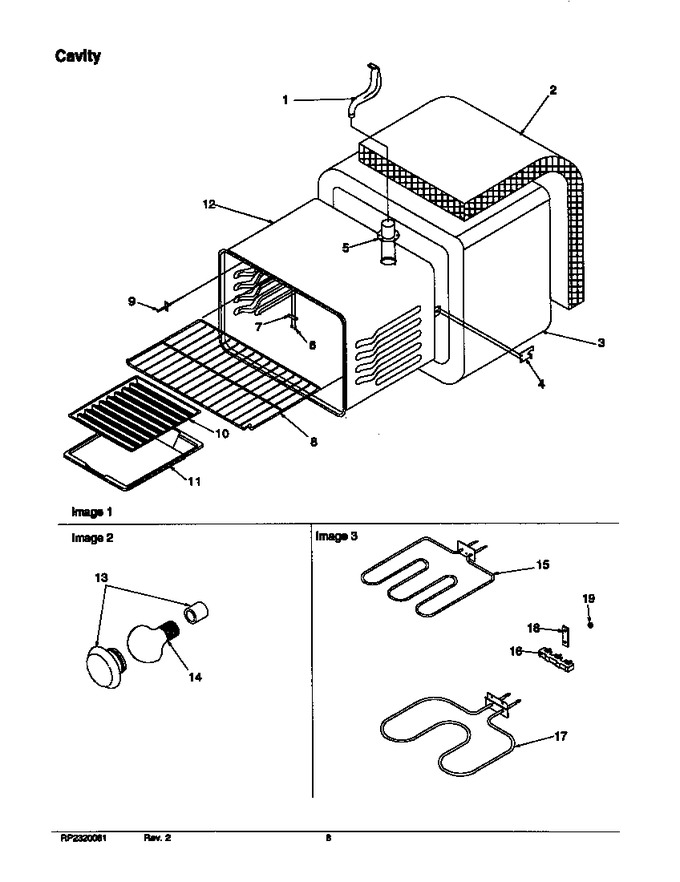

02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0316995		Tube, Vent		Appelez-nous	-
2	Y0316949		Insulation, Rear		Appelez-nous	-
3	Y0316948		Insulation, Wrapper		Appelez-nous	-
4	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
5	Y0316952		Smoke Eliminator, Short		Appelez-nous	-
6	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
7	Y0315022		Cover, Chip		Appelez-nous	-
8	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
9	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
10	31793702CG		Pan, Broiler		Appelez-nous	-
11	4396923		Broiler, Grid   (Replaces: 31793602CG)			Immediately	$ 52.04
12	31821301CG		Oven Shell (el. W/lt)		Appelez-nous	-
13	31823701		Oven Light Assy		Appelez-nous	-
14	Y0042175		Bulb, Light		Appelez-nous	-
15	Y0063532		Broil Element,3000 Watt				$ 66.11
16	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
17	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
18	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
19	31750124		Hex Nut (nkl)		Appelez-nous	-
NI	31715801		Wire, Insulation Retainer 100``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
