SELECT A DIAGRAM

Diagram for 01 - Console
01 - Console

Diagram for 02 - Tub, Literature And Optional
02 - Tub, Literature And Optional

Diagram for 03 - Door
03 - Door

Diagram for 04 - Dishrack
04 - Dishrack

Diagram for 05 - Pump And Motor
05 - Pump And Motor

Diagram for 06 - Wiring Harnes
06 - Wiring Harnes


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 3368537 Foam, Seal Appelez-nous -
6 WP4314961 Rocker Switch   (Replaces: 661520) Special Order $ 80.53

7 WP304231 Screw, 8-18 X 1/2 (3)   (Replaces: 304231) In-Stock Immediately $ 6.98

8 3370001 Timer Special Order $ 2,179.14

9 304232 Screw, 7-18 X 1-3/8 Appelez-nous -
10 304658 Relay, Start Appelez-nous -
12 3368102 Console Appelez-nous -
13 3368039 Insert, Decorative Appelez-nous -
15 3367843 Knob, Timer Appelez-nous -
16 WP488729 Screw, 8-18 X 1/2 (4)   (Replaces: 304234) In-Stock Immediately $ 7.01

20 304602 Grill, Vent Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

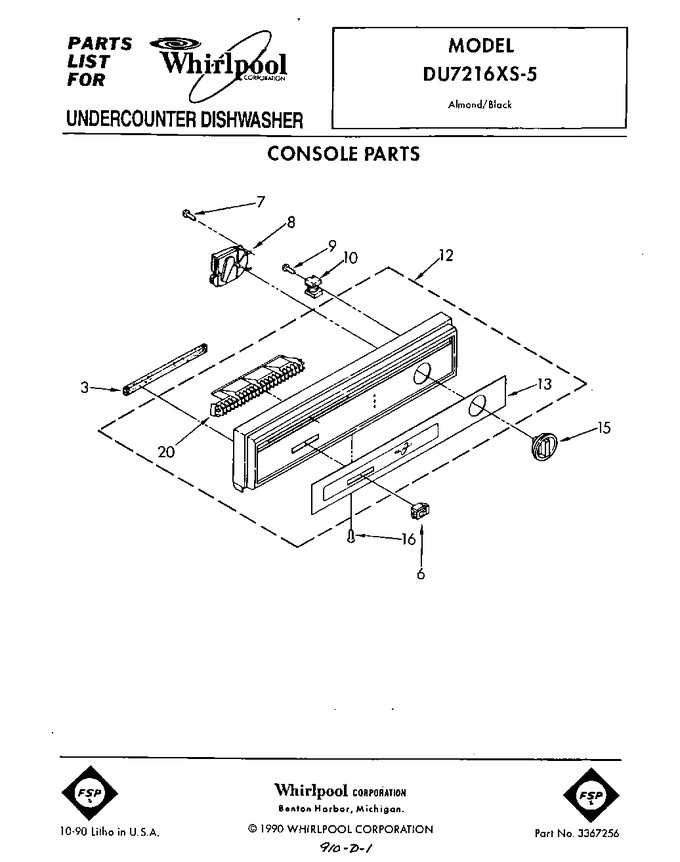

Diagram for DU7216XS5
