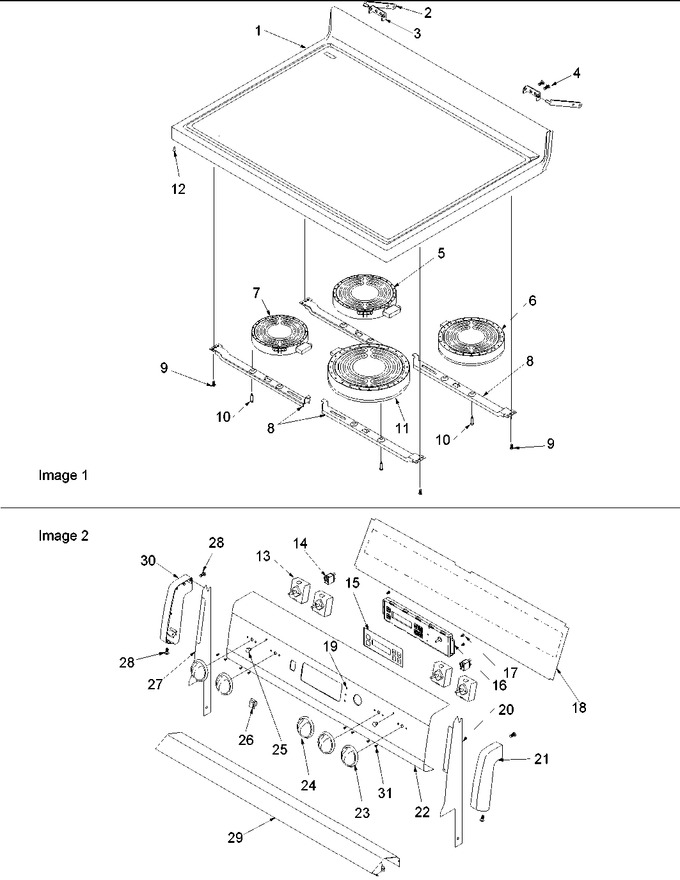

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31722311C		Assy, Top/glass (bsq)		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
5	W10823710		Element, Ribbon 8`` 240v/2000w   (Replaces: 31939101)			Immediately	$ 330.41
6	W10823699		Element, Ribbon 7`` 240v/1500w   (Replaces: 31939001)			Immediately	$ 145.67
7	31938901		Element, Ribbon 6`` 240v/1200w		Appelez-nous	-
8	31720701		Bracket, Element		Appelez-nous	-
9	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
10	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
11	31939201		Element, Ribbon (2500 Watts)		Appelez-nous	-
12	31717001		Spacer, Snap-in		Appelez-nous	-
13	31926703		Switch, Infinite Csi (r)		Appelez-nous	-
13	31926702		Switch, Infinite Csi (b)		Appelez-nous	-
13	31926701		Switch, Infinite Csi (y)		Appelez-nous	-
14	31722801		Light, Indicator (125v)		Appelez-nous	-
15	31777908C		Overlay,mylar(bisque)		Appelez-nous	-
16	31771301		Krc Electric				$ 367.01
17	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
18	0315887		Cover, Upper Rear		Appelez-nous	-
19	31780501		Lens, Ind Light (mini Snap In)		Appelez-nous	-
20	315876C		Bkgd Support,rh(bisque)		Appelez-nous	-
21	315841C		End Cap, Rh(bisque)		Appelez-nous	-
22	31779440C		Pnl, Bkgd (bisque)		Appelez-nous	-
23	31932304C		Knob, Infinite Switch (bsq)		Appelez-nous	-
24	31760310C		Knob, Thermostat (bsq)		Appelez-nous	-
25	Y0316265		Lens, Indicator		Appelez-nous	-
26	301491C		Switch,rocker(bisque)		Appelez-nous	-
27	315877C		Bkgd Support,lh(bisque)		Appelez-nous	-
28	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
29	31722704B		Shield, Bkgd Trim Heat		Appelez-nous	-
30	315843C		End Cap, Lh(bisque)		Appelez-nous	-
31	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
	NOTE:		Note: Ribbon Element Limiters Are Not Replaceable.		Appelez-nous	-
NI	31778201		Harness, Bkgd (6300/6110)		Appelez-nous	-
NI	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
