SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


24 - Wiring Schematic


25 - Wiring Diagram

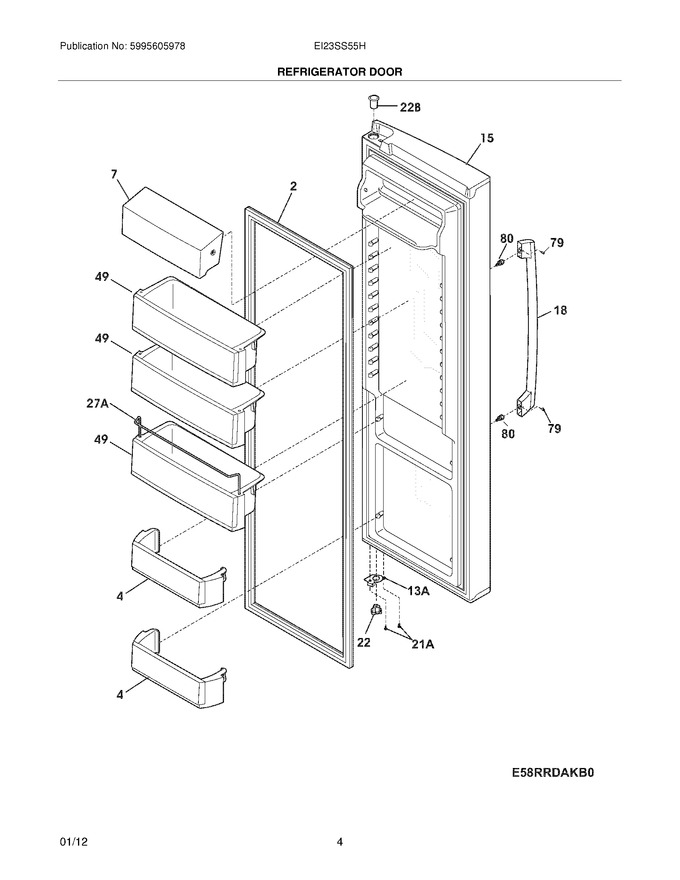

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 241786007)			Immediately	$ 94.66
4	241750801		Bin-door,pseudo ,2-liter ,bottom		Appelez-nous	-
7	241749401		Door-dairy		Appelez-nous	-
15	241837239		Door-refr,black ,complete Assy				$ 288.09
18	242009905		Handle-door,black		Appelez-nous	-
22	241760501		Bearing-hinge,black ,lower				$ 16.02
49	241749601		Bin-door,gallon		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	241990201		Door Stop,black ,ref				$ 21.27
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760404		Bearing,hinge ,top				$ 12.76
27A	241752805		Retainer,tall Bottle		Appelez-nous	-
NI	241601002		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
