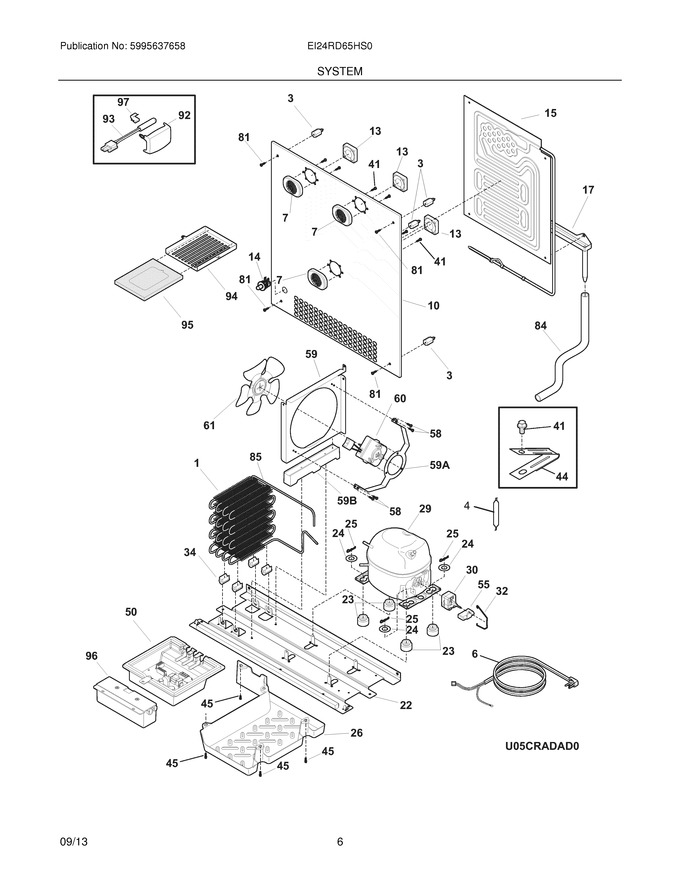

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	241890002		Spacer-evap,1``		Appelez-nous	-
4	5303305677		Dryer-filter,r134a System   (Replaces: 218944002)			Immediately	$ 31.67
7	241960301		Cover-fan				$ 16.59
10	241960101		Cover-evap Coil		Appelez-nous	-
17	241889801		Trough-drain		Appelez-nous	-
22	241888101		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
26	241889901		Pan-defrost Drain		Appelez-nous	-
32	216649200		Clip,controller				$ 6.30
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
44	5304456288		Clamp-wiring Harness,strain Relief ,galv Steel		Appelez-nous	-
45	241906101		Screw-no.10 X 3/4 Tek		Appelez-nous	-
50	241511116		Board-main Power				$ 244.08
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
58	241953902		Screw,hex Washer Head ,8-18 X 3/8   (Replaces: 240433203)			Immediately	$ 17.11
59	241889701		Shroud,cond Fan Motor				$ 76.84
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
81	240555002		Screw,8-32 X 3/8 ,black   (Replaces: 240555004)			Immediately	$ 13.46
84	241931401		Tube-drain,lower		Appelez-nous	-
85	241898101		Tube-hot Loop		Appelez-nous	-
92	241512902		Cover-sensor,black		Appelez-nous	-
93	240597220		Sensor,temperature ,10k ,ntc   (Replaces: 240597203)			Immediately	$ 5.16
94	241904001		Housing-filter,air				$ 32.61
95	241754001		Filter-air		Appelez-nous	-
97	241519401		Clip,sensor				$ 8.51
59A	241889601		Bracket-cond Motor		Appelez-nous	-
59B	241896401		Support,cond Shroud		Appelez-nous	-
F1	241931201		Condenser				$ 84.44
F13	241981801		Motor-evap Fan				$ 116.24
F14	241911709		Switch,plunger Style   (Replaces: 241911704)				$ 21.99
F15	241891801		Evaporator,w/heat Exchangr				$ 250.81
F29	5303918366		Compressor,w/electricals		Appelez-nous	-
F30	241707717		Starter-ptc		Appelez-nous	-
F6	241516904		Cord-service   (Replaces: 241516901)			Immediately	$ 38.68
F96	241900001		Board-led Power				$ 281.56
FNI	241900401		Harness-led Driver				$ 110.10
FNI	241961801		Harness-evap Light Switch				$ 37.19
FNI	241900701		Harness-intermediate, Uc,led Lighting				$ 24.22
FNI	241960701		Harness-wiring,secondary ,drawer Harness				$ 94.98
NI	241853201		Screw,no.8-18 X 1/2		Appelez-nous	-
NI	241919901		Clamp,cable		Appelez-nous	-
NI	241532401		Channel				$ 30.47
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241933201		Seal-coil Cover		Appelez-nous	-
NI	241961201		Harness-wiring				$ 148.85
NI	241932701		Retainer,wire				$ 5.53
NI	241932601		Bushing-service Cord		Appelez-nous	-
NI	241961701		Harness-wiring,machine Compt				$ 150.21
NI	241931901		Washer,nylon		Appelez-nous	-
NI	240542601		Clip-wiring Harness		Appelez-nous	-
NI	218515401		Clip-grille				$ 17.72
