SELECT A DIAGRAM

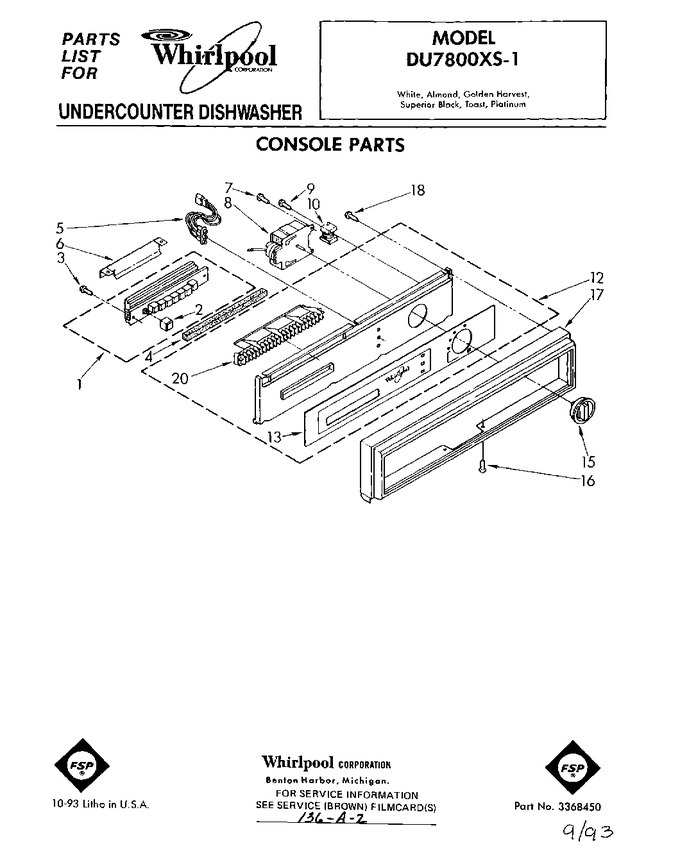

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater, Pump, And Lower Spay Arm


05 - Dishrack And Panel


06 - 3367725 Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3368541		Switch, Pushbutton		Appelez-nous	-
2	304456		Button (8)		Appelez-nous	-
3	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (2)   (Replaces: 304231)			Immediately	$ 6.98
4	3368537		Baffle		Appelez-nous	-
5	304423		Light, Indicator (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
6	3368547		Shield, Sound		Appelez-nous	-
7	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (3)   (Replaces: 304231)			Immediately	$ 6.98
8	3367794		Timer (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
9	304232		Screw, 7-18 X 1-3/8 Slot Hex Wash Hd		Appelez-nous	-
10	304409		Relay, Start		Appelez-nous	-
12	3367809		Console		Appelez-nous	-
13	3367767		Insert, Decorative		Appelez-nous	-
15	3367843		Knob, Timer		Appelez-nous	-
16	302251		Screw, 8-18 X 5/8 Phlps Truss Hd Hi-lo (4)		Appelez-nous	-
17	304396		Bezel, Console		Appelez-nous	-
18	3367296		Screw, 6-19 X3/8 Torx Pan Hd (4)		Appelez-nous	-
20	304602		Grill, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
