01 - Cabinet
02 - Cavity
03 - Maintop And Backguard
04 - Oven Door And Storage Door
SELECT A DIAGRAM
New Model Search:

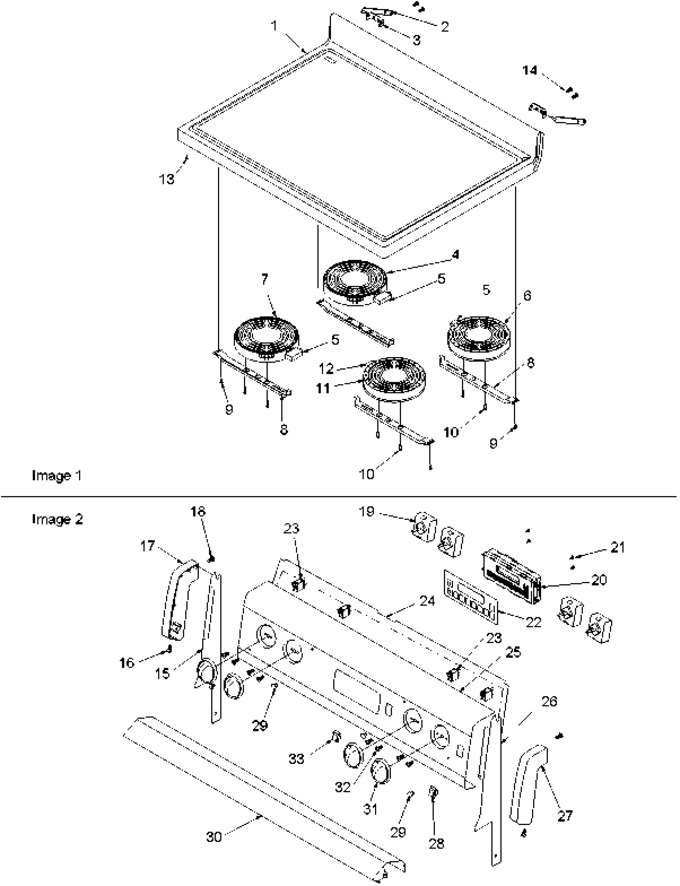

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31721505WW | Assy,top & Glass(white-white) |
|
- | |||||
| 2 | Y0315931 | Pin, Hinge |
|
- | |||||
| 3 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 4 | W10823708 | Element, Ribbon (2000w) (Replaces: 31794501) |
|
$ 307.60 | |||||
| 5 | 31846201 | Limiter |
|
- | |||||
| 6 | W10823699 | Element, Ribbon (1500w) (Replaces: 31794601) |
|
Immediately | $ 145.67 | ||||
| 7 | 31794701 | Element, Ribbon (1200w) |
|
- | |||||
| 8 | 31720701 | Bracket, Element |
|
- | |||||
| 9 | 31750420 | Screw, No.8-32 X3/8 P Trs Hd Lp |
|
- | |||||
| 10 | 31750715 | Screw, Shoulder Ab 6-20 X .825 |
|
- | |||||
| 11 | W10823726 | Element, Dual Radiant 6/9`` (Replaces: 31852001) |
|
$ 308.80 | |||||
| 12 | 0316689 | Limiter-dual |
|
- | |||||
| 13 | 31717001 | Spacer, Snap-in |
|
- | |||||
| 14 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410) |
|
Immediately | $ 12.65 | ||||
| 15 | 315877W | Bkgd. Support-lh |
|
- | |||||
| 16 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 17 | 315843W | End Cap Lh |
|
$ 29.45 | |||||
| 18 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 19 | WP74011243 | Switch, Infinite (Replaces: 31891202) |
|
$ 115.88 | |||||
| 20 | Y0315570 | Erc3 (electric) |
|
- | |||||
| 21 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 22 | 315851W | Overlay, Erc3 Mylar |
|
- | |||||
| 23 | 31722801 | Light, Indicator (125v) |
|
- | |||||
| 24 | 0315887 | Cover, Upper Rear |
|
- | |||||
| 25 | 31749812W | Pnl, Bkgd (white) |
|
- | |||||
| 26 | 315876W | Bkgd. Support-rh |
|
- | |||||
| 27 | 315841W | End Cap Rh |
|
$ 24.87 | |||||
| 28 | 74008717 | Switch, Rocker (Replaces: 316160W) |
|
$ 72.68 | |||||
| 29 | Y0316265 | Lens, Indicator |
|
- | |||||
| 30 | 31722704B | Shield, Bkgd Trim Heat |
|
- | |||||
| 31 | 31760102W | Knob, Infinite Switch (wht) |
|
- | |||||
| 32 | 31750714 | Screw, No.8-32 X 1/4 |
|
- | |||||
| 33 | 301491W | Switch, Rocker |
|
- | |||||
| NI | Y0316502 | Harness, Wire (radiant Elem Lh |
|
- | |||||
| NI | Y0316503 | Harness, Wire |
|
- | |||||
| NI | 31750425 | Screw, No.8-18 X 3/8 Pph |
|
- | |||||
| NI | 31752001 | Backguard,wire Harness Art651 |
|
- | |||||
| NI | 31750309 | Screw, No.6-20 X .375 Pan Hd |
|
- |
