SELECT A DIAGRAM

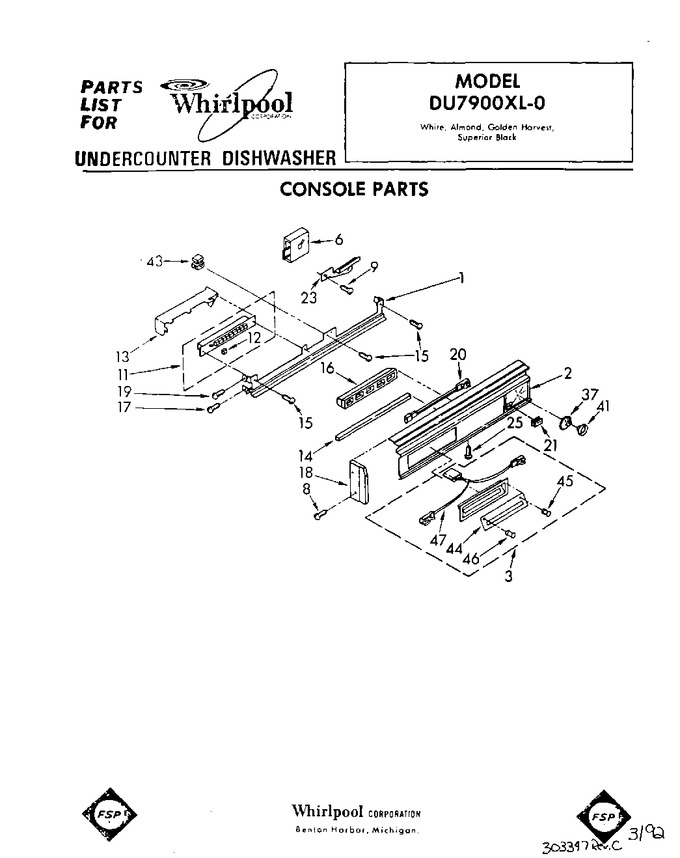

01 - Console


02 - Tub, Lit/optional


03 - Door


04 - 302740 Pump And Motor


05 - Heater, Pump And Lower Sprayarm


06 - Dishrack And Panel


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300750		Bracket, Console		Appelez-nous	-
2	303466		Panel, Escutcheon		Appelez-nous	-
3	303464		Bezel Assembly, Pushbutton				$ 83.89
6	303114		Timer, Disconnect		Appelez-nous	-
8	W10759522		Screw, 8-15 X 3/4 (4)   (Replaces: 162402)				$ 6.98
9	WP356418		Screw   (Replaces: 96435)				$ 7.13
11	303430		Switch, Pushbutton		Appelez-nous	-
12	301978		Button (8)		Appelez-nous	-
13	303129		Barrier, Pushbutton		Appelez-nous	-
14	719860		Baffle		Appelez-nous	-
15	WP489128		Screw (6)   (Replaces: 98209)				$ 9.79
16	301878		Grille, Vent		Appelez-nous	-
17	303090		Screw, 8-18 X 5/8 (2)		Appelez-nous	-
18	303006		Cap, End (l.h.)		Appelez-nous	-
18	303005		Cap, End (r.h.)		Appelez-nous	-
19	WP302868		Screw, 8-18 X 1/2 (2)   (Replaces: 302868)			Immediately	$ 6.98
20	302184		Indicator Light & Connector		Appelez-nous	-
21	302227		Lens, Red		Appelez-nous	-
23	303136		Bracket, Timer Mounting		Appelez-nous	-
25	WP487353		Screw, 6-20 X 1/2   (Replaces: 301502)				$ 6.81
37	302067		Dial, Indicator		Appelez-nous	-
41	302180		Knob, Timer		Appelez-nous	-
43	300516		Relay (alternate)		Appelez-nous	-
43	301536		Relay (alternate)		Appelez-nous	-
43	301620		Relay, Start (alternate)		Appelez-nous	-
44	303431		Escutcheon, Pushbutton Switch		Appelez-nous	-
45	302840		Lens, Red		Appelez-nous	-
46	302841		Lens, Green		Appelez-nous	-
47	303132		Indicator Light & Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
