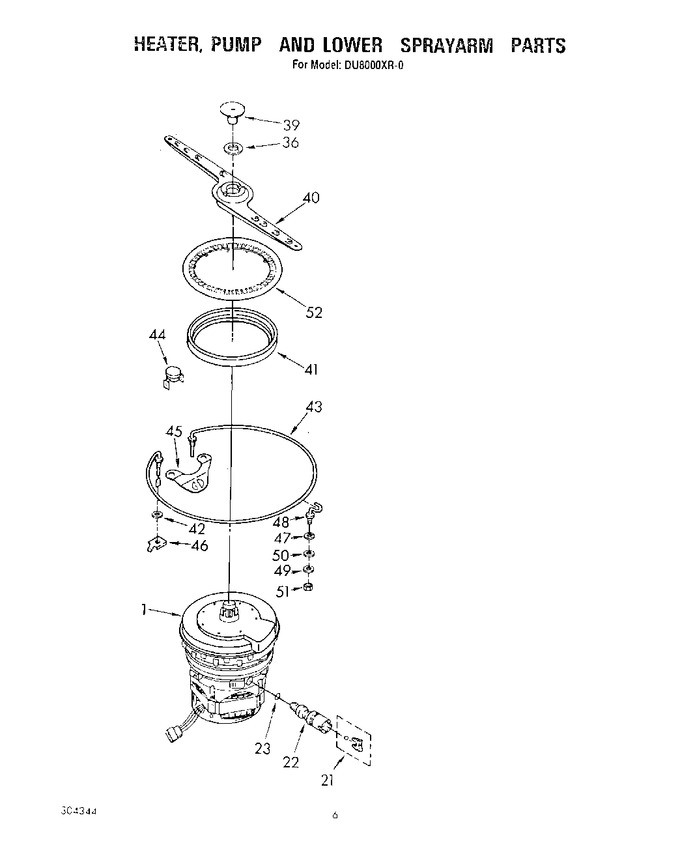

SELECT A DIAGRAM

01 - Console


02 - Tub, Lit/optional


03 - Door


04 - Heater, Pump, And Lower Sprayarm


05 - Dishrack And Panel


06 - 304599 Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304599		Pump & Motor Assembly (includes Illus. 41)		Appelez-nous	-
1	67548		Check Ball & Retainer		Appelez-nous	-
22	675238		Valve, Check (includes Illus. 21 & 23)   (Replaces: 300800)				$ 78.04
23	95080		``o`` Ring		Appelez-nous	-
36	719576		Bearing, Nozzle				$ 7.48
39	303870		Cap, Nozzle		Appelez-nous	-
40	302767		Spray Arm, Lower		Appelez-nous	-
41	717000		Gasket, Pump				$ 78.98
42	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.47
43	717141		Heater (alternate)		Appelez-nous	-
43	719687		Heater (alternate)		Appelez-nous	-
43	302113		Heater (alternate)		Appelez-nous	-
43	302562		Heater (alternate)		Appelez-nous	-
44	303652		Thermostat (alternate)		Appelez-nous	-
44	303282		Thermostat (alternate)				$ 31.74
45	303808		Bracket		Appelez-nous	-
46	718537		Nut, 7/16 X 20 (2)		Appelez-nous	-
47	717289		Washer, Retainer (2)		Appelez-nous	-
48	717096		Support, Heater (2)		Appelez-nous	-
49	711284		Washer (2)		Appelez-nous	-
50	14351		Washer (2)		Appelez-nous	-
51	120614		Nut, 10-32 (2)		Appelez-nous	-
52	303469		Grate		Appelez-nous	-
