01 - Cabinet Assy


02 - Electrical Components


03 - Main Top Assy


04 - Oven Assy


05 - Oven Door Assy


06 - Page 4


07 - Storage Drawer Assy

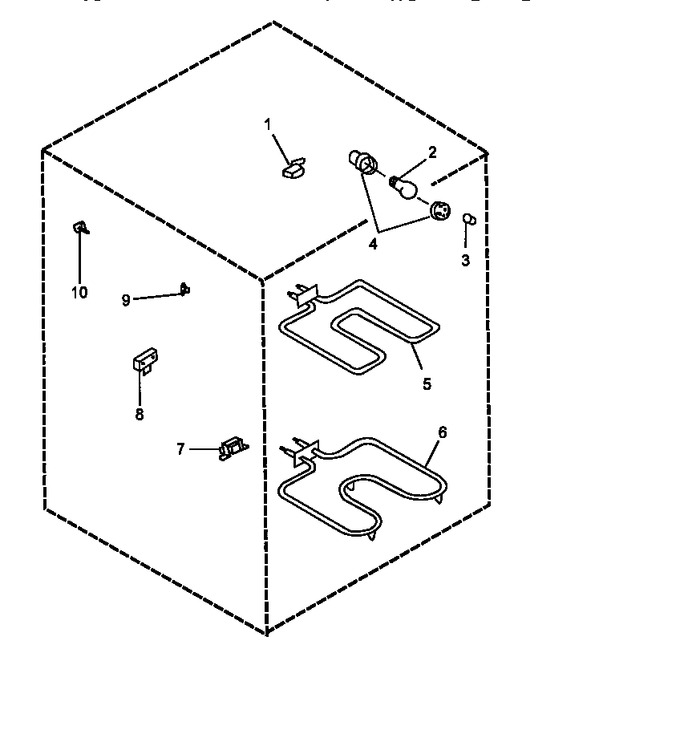

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0314277		Switch, Door Latch		Appelez-nous	-
2	Y0042175		Bulb, Light		Appelez-nous	-
3	Y0305797		Switch, Oven Door		Appelez-nous	-
4	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
5	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
6	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
7	Y0071869		Ballast		Appelez-nous	-
8	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
9	Y0053584		Switch, Hi Limit		Appelez-nous	-
10	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
NI	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
NI	M0282402		Usr 0041847		Appelez-nous	-
