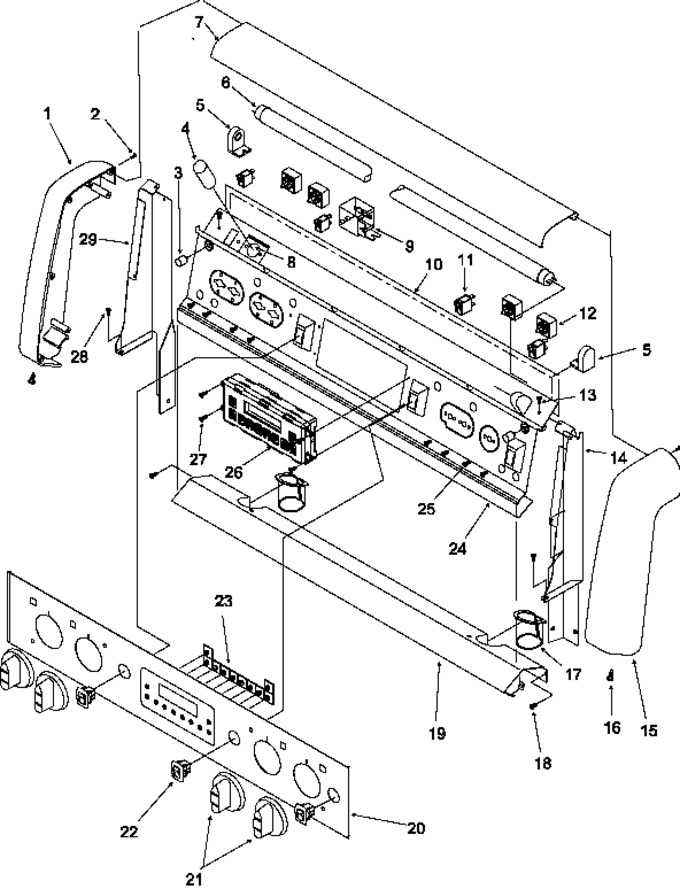

SELECT A DIAGRAM

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door


06 - Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	315844L		End Cap-glass Bkgd Lh		Appelez-nous	-
2	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
3	Y0314643		Bumper, Rubber		Appelez-nous	-
4	0071920		Starter, Flourescent		Appelez-nous	-
5	Y0304559		Lamp Holder-floures		Appelez-nous	-
6	WP95292		Lamp, Fluorescent   (Replaces: Y0315927)			Immediately	$ 121.45
7	315834L		Cover, Light		Appelez-nous	-
8	Y0304560		Start Holdr-flour.lmp		Appelez-nous	-
9	Y0071869		Ballast		Appelez-nous	-
10	0315887		Cover, Upper Rear		Appelez-nous	-
11	Y0071820		Indicator Light		Appelez-nous	-
12	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
13	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
14	315876L		Bkgd. Support-rh		Appelez-nous	-
15	315842L		End Cap-glass Bkgd Rh		Appelez-nous	-
16	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-
17	0316548		Bushing, Wire		Appelez-nous	-
18	Y0041807		Screw No.8abx1/4 Ph Hd		Appelez-nous	-
19	315874B		Shield, Bkgd Trim Heat		Appelez-nous	-
20	315831L		Glass, Bkgd		Appelez-nous	-
21	315846L		Knob, Infinite Amana		Appelez-nous	-
22	315858L		Switch, Spst		Appelez-nous	-
23	315850L		Button, Erc		Appelez-nous	-
24	315839L		Mtg. Pnl, Bkgd. Control		Appelez-nous	-
25	Y0316546		Screw, No.8-32 X 3/16``		Appelez-nous	-
26	Y0315570		Erc3 (electric)		Appelez-nous	-
27	Y0073657		Screw, No.6-20 X .375 Pan Hd Ph		Appelez-nous	-
28	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
29	315877L		Bkgd. Support-lh		Appelez-nous	-
NI	Y0315869		Harness, Bkgd Erc		Appelez-nous	-
NI	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-
NI	Y0305391		Collar, Starter Socket		Appelez-nous	-
