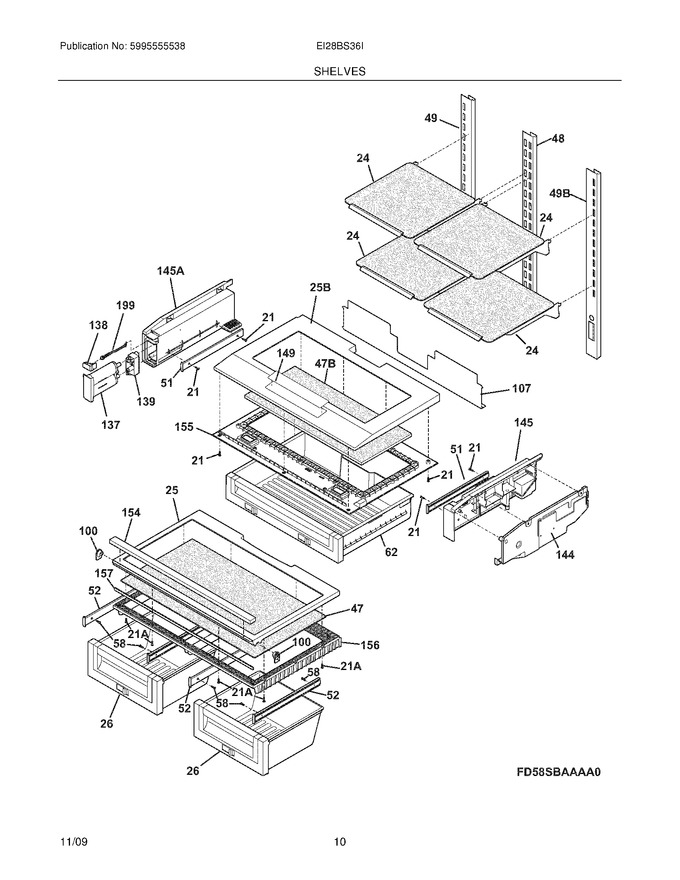

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	241953902		Screw,no.8 - 18 X .380			Immediately	$ 17.11
24	241839901		Shelf-glass,formed				$ 281.14
25	241802202		Frame-crisper Cover,upper		Appelez-nous	-
26	241772801		Pan-crisper		Appelez-nous	-
47	241768801		Insert-pan Cover,glass				$ 72.66
48	241774201		Channel-shelf Mtg,center				$ 43.73
49	241773802		Channel-shelf Mtg,side ,lh		Appelez-nous	-
51	241816102		Slide-deli				$ 181.39
52	241769001		Slide-crisper Cover				$ 126.17
58	241941202		Screw,8-18 X 3/8				$ 15.17
62	241827204		Pan-deli		Appelez-nous	-
100	241768601		Support-crspr Cover				$ 19.13
107	241925901		Cover-water Tank				$ 84.68
137	EWF01C		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 241932301)			Immediately	$ 75.59
138	241885901		Button-filter Release				$ 28.35
139	242058801		Base-water Filter				$ 53.87
144	241803902		Cover-deli Air Control				$ 127.96
145	241803802		Housing-deli Air Control				$ 136.50
149	241974501		Insert-pan Cover,plastic				$ 57.79
154	241879902		Trim-crisper Cover   (Replaces: 241879901)				$ 39.44
155	241803402		Frame-deli Cover,lower		Appelez-nous	-
156	241872001		Frame-crisper Cover,lower				$ 138.13
157	241872201		Beam-crisper Cover				$ 53.85
199	240397501		Rod				$ 55.57
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
25B	241803302		Frame-deli Cover,upper		Appelez-nous	-
47B	241967401		Glass,2 Pane Insulatd				$ 225.39
49B	241774301		Channel-shelf Mtg,side ,rh				$ 43.05
F137	240527001		O-ring,wtr Filter Base   (Replaces: 240526901)				$ 10.62
F139	241858401		Screw,no.6 X 1/2 Hilo				$ 13.05
F145	242058702		Support,rail				$ 79.80
F199	240398401		Spring-filter Release Rod				$ 59.16
F47B	5304469950		Sealant,rubber Silicone			Immediately	$ 89.95
NI	241809203		Trim-shelf,hand Grip		Appelez-nous	-
NI	242010901		Roller Assy,deli Pan				$ 49.62
