SELECT A DIAGRAM

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door


06 - Storage Drawer

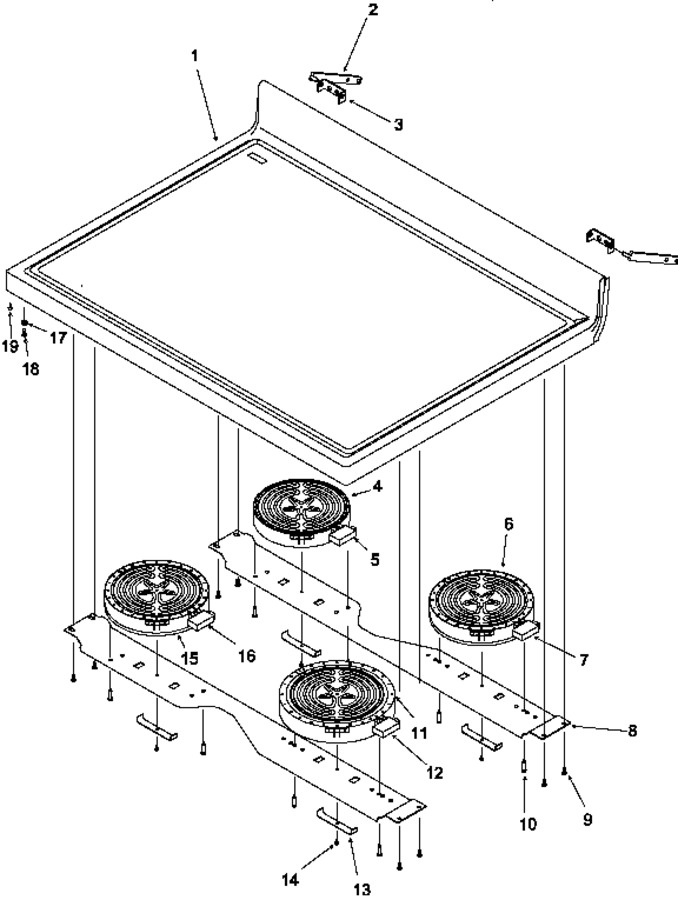

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316736WW		Assy,top & Glass(white-white)		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	W10823708		Element, Ribbon (2000 Watts)   (Replaces: Y0314912)				$ 307.60
5	0316688		Limiter (2000 Watts)		Appelez-nous	-
6	W10823699		Element, Ribbon (1500 Watts)   (Replaces: Y0314911)			Immediately	$ 145.67
7	0316687		Limiter (1500 Watts)		Appelez-nous	-
8	Y0316248		Brkt, Element		Appelez-nous	-
9	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	Y0316569		Screw, Shoulder		Appelez-nous	-
11	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0314899)				$ 308.80
12	0316689		Limiter-dual		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
15	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
16	0316686		Limiter (1200 Watts)		Appelez-nous	-
19	31717001		Spacer, Snap-in		Appelez-nous	-
NI	Y0316502		Harness, Wire (radiant Elem Lh		Appelez-nous	-
NI	0306652		Fastener, Clip		Appelez-nous	-
NI	Y0316503		Harness, Wire		Appelez-nous	-
NI	Y0091587		Cable, Clip Esm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
