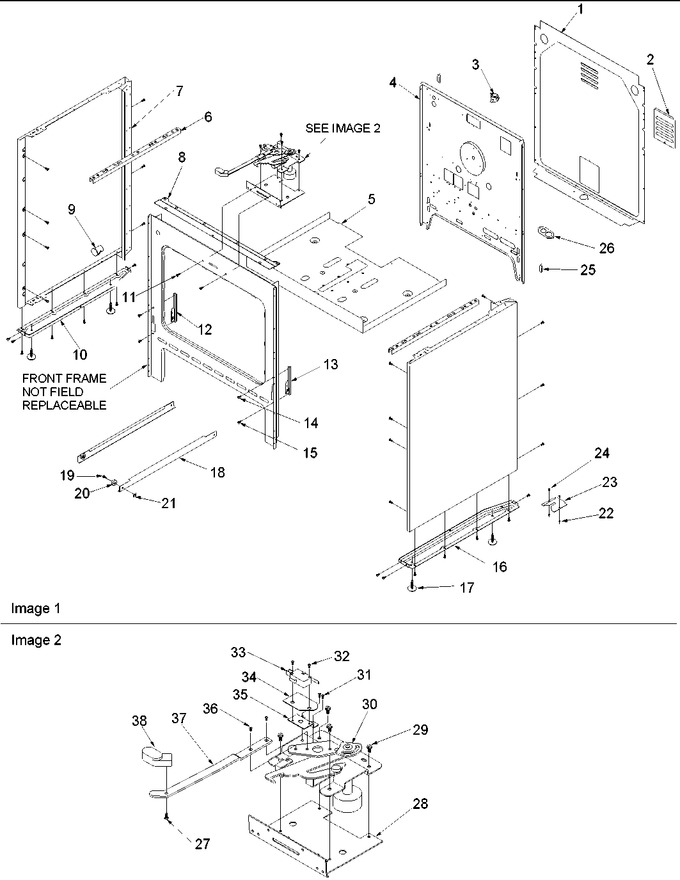

SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31757101		Cover, Rear		Appelez-nous	-
2	31757201		Plate, Access		Appelez-nous	-
3	Y0053584		Switch, Hi Limit		Appelez-nous	-
4	31733901		Retainer, Rear (elec)		Appelez-nous	-
5	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
6	Y0304019		Channel, Broil Burner		Appelez-nous	-
7	31825104W		Panel, Side (wht)		Appelez-nous	-
8	Y0314891		Brkt, Maintop (painted)		Appelez-nous	-
9	Y0315328		Plug, Button (3/4``-blk)		Appelez-nous	-
10	31854501		Brace, Leveling Leg (lt)		Appelez-nous	-
11	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
12	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
13	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
14	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
15	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
16	31854502		Brace, Leveling Leg (rt)		Appelez-nous	-
17	314187B		Leg,leveling Xxx		Appelez-nous	-
18	31733201		Track, Mounting		Appelez-nous	-
19	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
20	31733401		Roller, Drawer				$ 5.75
21	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
22	Y0301555		Anchor, Plastic		Appelez-nous	-
23	31945201		Bracket, Anti Tip		Appelez-nous	-
24	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
25	31730101		Clip, Tinnerman		Appelez-nous	-
26	0058311		Plate, Main Inlet Wire		Appelez-nous	-
27	Y0041769		Screw 6 32x5/16 Ph Fh		Appelez-nous	-
28	31848301		Bracket, Latch Mounting		Appelez-nous	-
29	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
30	31719901		Latch, Oven Door (elec)		Appelez-nous	-
31	Y0092365		Screw 4-40x1		Appelez-nous	-
32	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
33	Y0065780		Switch, Clean Circuit				$ 11.77
34	Y0091523		Insulation, Esm		Appelez-nous	-
35	Y0302316		Bracket, Switch		Appelez-nous	-
36	WP4159193		Screw, No.10-24x1/4 (pan Ph Hd)   (Replaces: 31750501)				$ 4.29
37	31919801B		Arm, Latch (black)		Appelez-nous	-
38	31919701B		Handle, Latch Arm (black)		Appelez-nous	-
NI	31970801		Anti-tip Pack		Appelez-nous	-
NI	31750517		Screw, No.10-32x1/2 (pan Ph Hd)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
