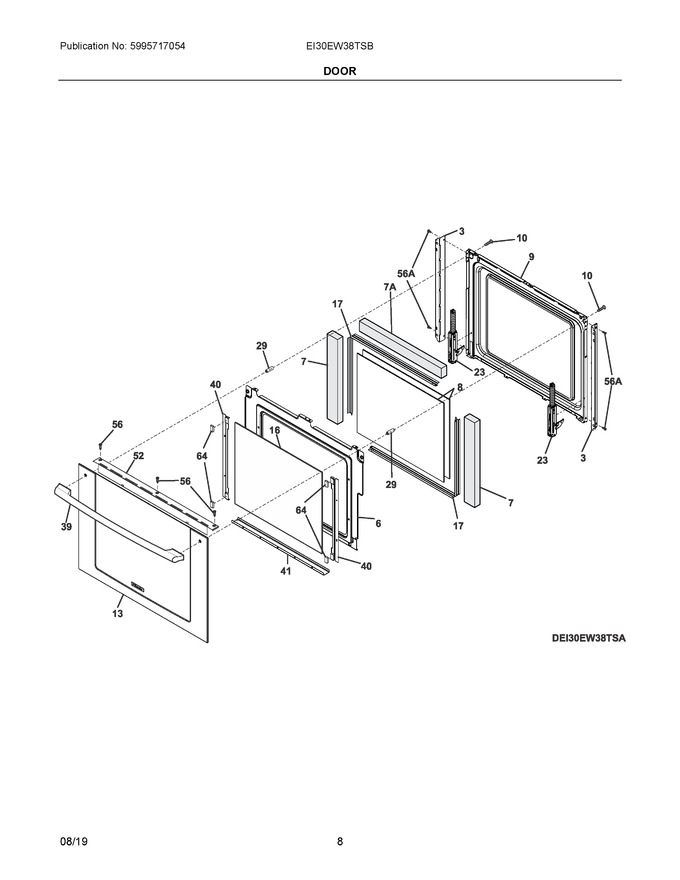

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304520787		Trim, Oven Door, Black, Side Vent   (Replaces: 139036601)				$ 61.66
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	807887502		Insulation, Door, Side, (2)				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502502)			Immediately	$ 115.65
9	808474615		Liner, Oven Door, Cobalt   (Replaces: 808474603)				$ 143.87
10	316001009		Screw, Waf Hd Sq, 10-24 X 1.88, (2), Handle Mtg				$ 15.17
13	5304512256		Door Assembly, Outer, Stainless/black, W/badge				$ 1,016.51
16	316502601		Glass, Door, Airwash, Hbii			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	139010306		Hinge, Door, Gold, Dual Spring			Immediately	$ 143.33
29	808296701		Spacer, Door Handle, (2)				$ 15.92
39	316380802		Handle, Door, Stainless				$ 250.86
40	5304524357		Bracket, Glass, Air Wash, (2)   (Replaces: 808109202)				$ 41.72
41	5304500644		Support, Glass				$ 19.35
52	5304520856		Trim, Door, Black, Top   (Replaces: 808109102)				$ 79.62
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
64	318165800		Spacer, Glass, Foam				$ 17.72
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	807887501		Insulation, Door, Upper		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
