SELECT A DIAGRAM

01 - Cover Sheet

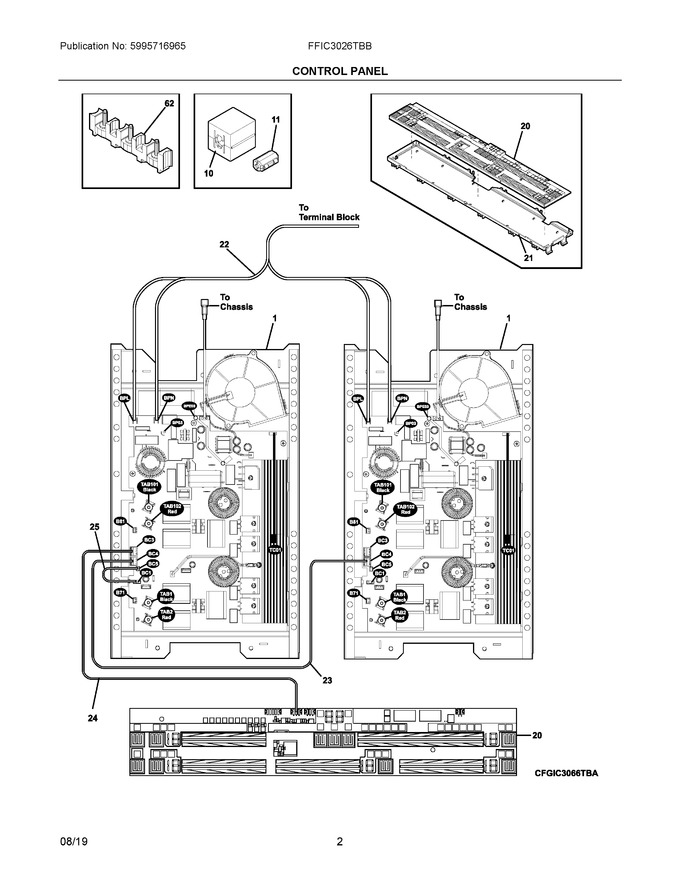

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	357266088		Generator, Circuit Board, Induction, 2 Zone			Immediately	$ 506.77
10	5304506076		Filter, Ferrite Choke			Immediately	$ 42.01
11	5304514339		Filter, Ferrite Choke			Immediately	$ 39.95
20	561940443		Control Assembly, User Interface			Immediately	$ 326.95
21	561630814		Carrier, User Interface				$ 55.67
22	5304522463		Harness, Wiring, Main				$ 83.88
23	318578332		Harness, Wiring, Communication			Immediately	$ 54.35
24	5304514342		Harness, Wiring, Bc3-ui Board			Immediately	$ 25.79
25	387484500		Jumper Assembly, Bc1-bc5				$ 9.61
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
NI	5304522464		Box & Wires Assy		Appelez-nous	-
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	5304514340		Harness Assembly, Filter, W/capacitors				$ 37.66
NIA	305309608		Screw, M4		Appelez-nous	-
NIB	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
