01 - Cover Sheet

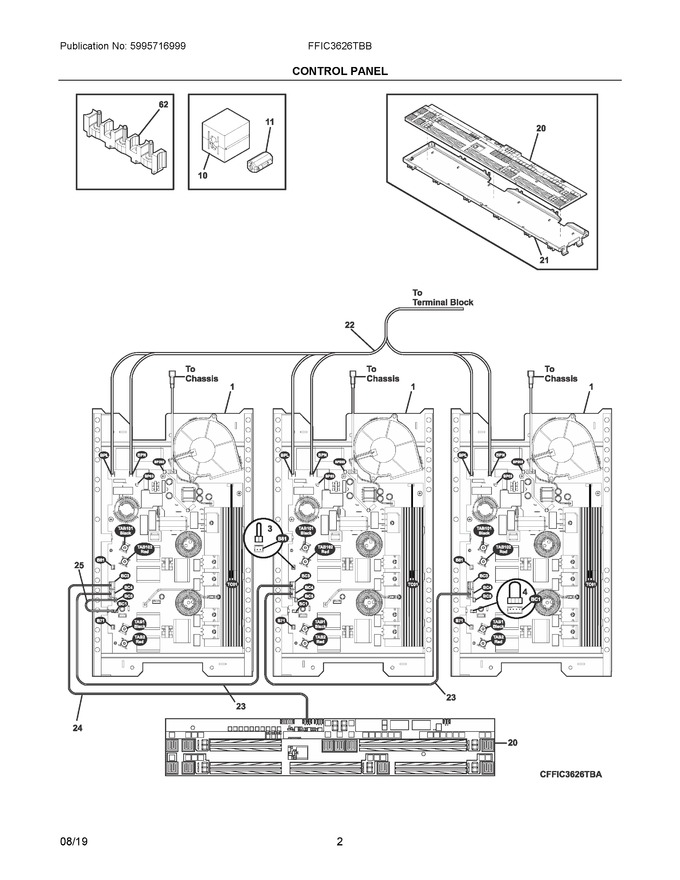

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 357266088 | Generator, Circuit Board, Induction, 2 Zone |
|
Immediately | $ 506.77 | ||||
| 3 | 387540300 | Bridging Plug, Dummy Ntc, B81, Center Gen. |
|
$ 3.84 | |||||
| 4 | 318578302 | Wire, Jumper, Generator, Bc1 |
|
$ 18.43 | |||||
| 10 | 5304506076 | Filter, Ferrite Choke |
|
Immediately | $ 42.01 | ||||
| 11 | 5304514339 | Filter, Ferrite Choke |
|
Immediately | $ 39.95 | ||||
| 20 | 561940444 | Control Assembly, User Interface |
|
$ 326.38 | |||||
| 21 | 561630814 | Carrier, User Interface |
|
$ 55.67 | |||||
| 22 | 5304522492 | Harness, Wiring, Main |
|
Immediately | $ 104.66 | ||||
| 23 | 318578332 | Harness, Wiring, Communication |
|
Immediately | $ 54.35 | ||||
| 24 | 5304514389 | Harness, Wiring, Bc3-ui Board |
|
$ 23.51 | |||||
| 25 | 387484500 | Jumper Assembly, Bc1-bc5 |
|
$ 9.61 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| NI | 5304514340 | Harness Assembly, Filter, W/capacitors |
|
$ 37.66 | |||||
| NI | 5304522494 | Box & Wires Assy |
|
- | |||||
| NI | 305309704 | Screw, St, 4.2 : 12, (9) |
|
- | |||||
| NIA | 305309608 | Screw, M4 |
|
- | |||||
| NIB | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIC | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
