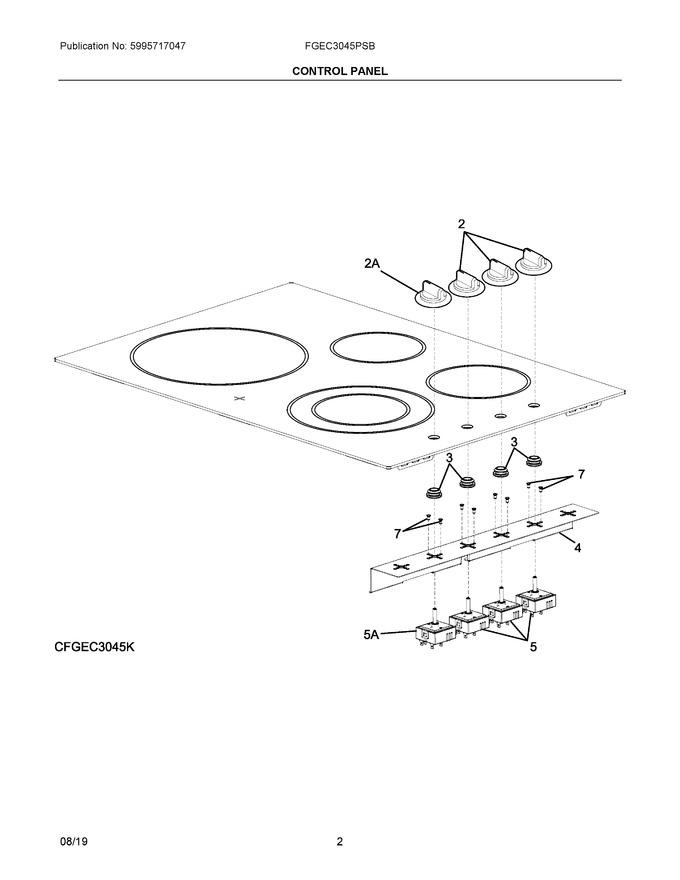

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316564616 | Knob, Control, Stainless, Single |
|
- | |||||
| 3 | 5304515130 | Bushing, Knob, Sealing |
|
Immediately | $ 91.15 | ||||
| 4 | 387559700 | Bracket, Support, Switch Mtg. |
|
- | |||||
| 5 | 5304526190 | Switch, Infinite, Single Control (Replaces: 305458905) |
|
Immediately | $ 90.50 | ||||
| 7 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 2A | 316564615 | Knob, Control, Stainless, Dual |
|
$ 164.57 | |||||
| 5A | 903097-9040 | Switch, Infinite, Dual Control (Replaces: 318191001) |
|
Immediately | $ 90.83 | ||||
| NI | 5304515131 | Spacer, Silicone Seal, Switch Shaft |
|
Immediately | $ 160.02 |
