01 - Cover Sheet

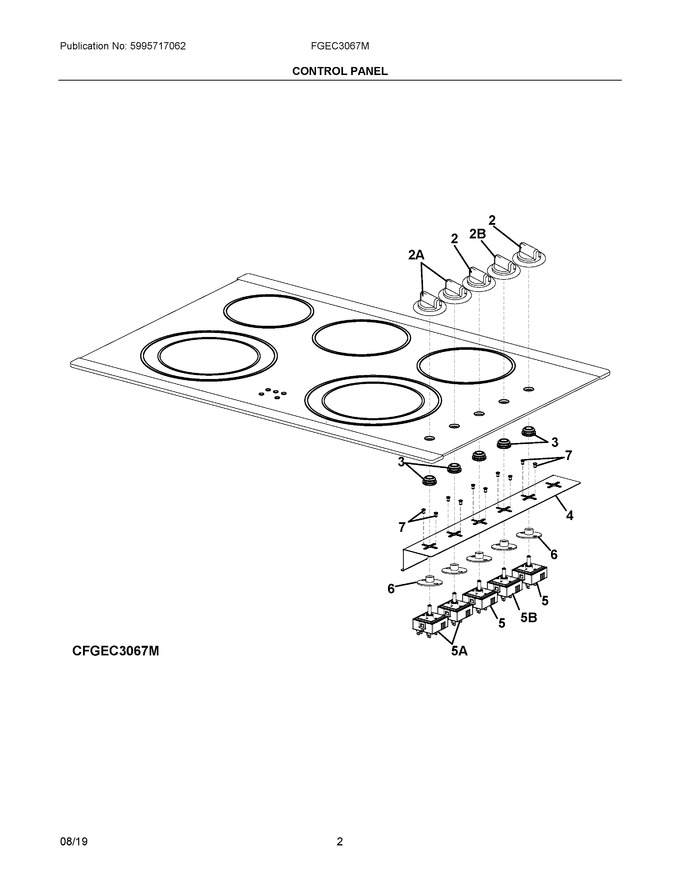

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318949102 | Knob, Control, Stainless, Single |
|
$ 85.10 | |||||
| 3 | 387316100 | Bushing, Knob, Sealing |
|
$ 13.46 | |||||
| 4 | 305521800 | Bracket, Support, Switch Mtg |
|
- | |||||
| 5 | 305458900 | Switch, Surface Element, Single (Replaces: 305458906) |
|
$ 66.08 | |||||
| 6 | 318146010 | Bushing, Switch |
|
$ 17.16 | |||||
| 7 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 2A | 316564615 | Knob, Control, Stainless, Dual |
|
$ 164.57 | |||||
| 2B | 318949103 | Knob, Control, Stainless, Keep Warm |
|
$ 78.65 | |||||
| 5A | 5304527965 | Switch, Surface Element, Dual (Replaces: 305458904) |
|
Immediately | $ 100.56 | ||||
| 5B | 318282401 | Switch, Selector, Keep Warm |
|
$ 109.72 | |||||
| NIBA | 305567100 | Spacer, Switch |
|
- |
