SELECT A DIAGRAM
01 - Cover Sheet

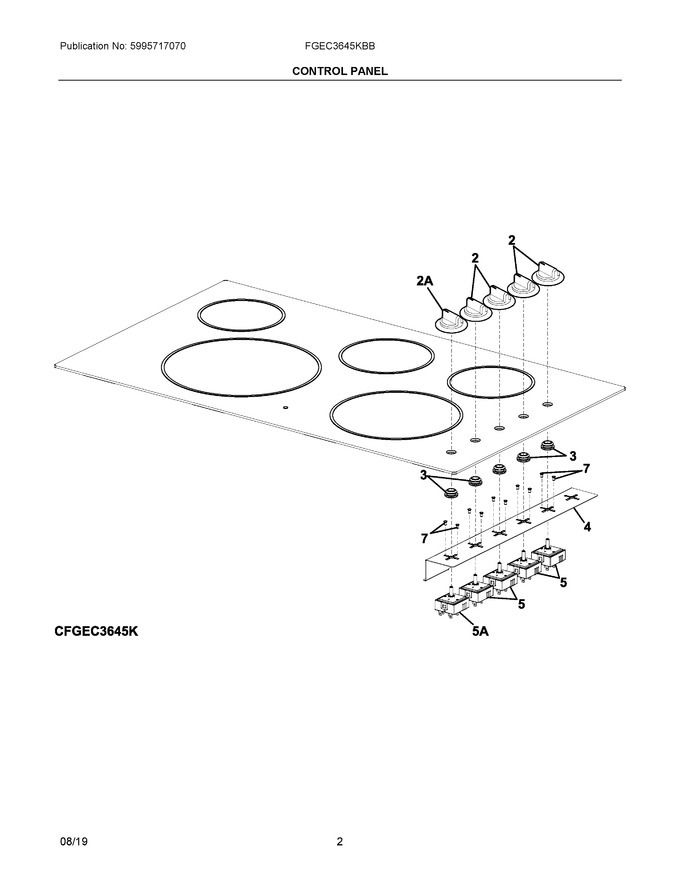

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316564618 | Knob, Control, Black, Single |
|
$ 43.20 | |||||
| 3 | 387316100 | Bushing, Knob, Sealing |
|
$ 13.46 | |||||
| 4 | 387559700 | Bracket, Support, Switch Mtg. |
|
- | |||||
| 5 | 5304526190 | Switch, Infinite, Single Control (Replaces: 305458905) |
|
Immediately | $ 90.50 | ||||
| 7 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 2A | 316564614 | Knob, Control, Black, Dual |
|
$ 46.57 | |||||
| 5A | 5304527965 | Switch, Surface Element, Dual (Replaces: 305458904) |
|
Immediately | $ 100.56 |
