01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

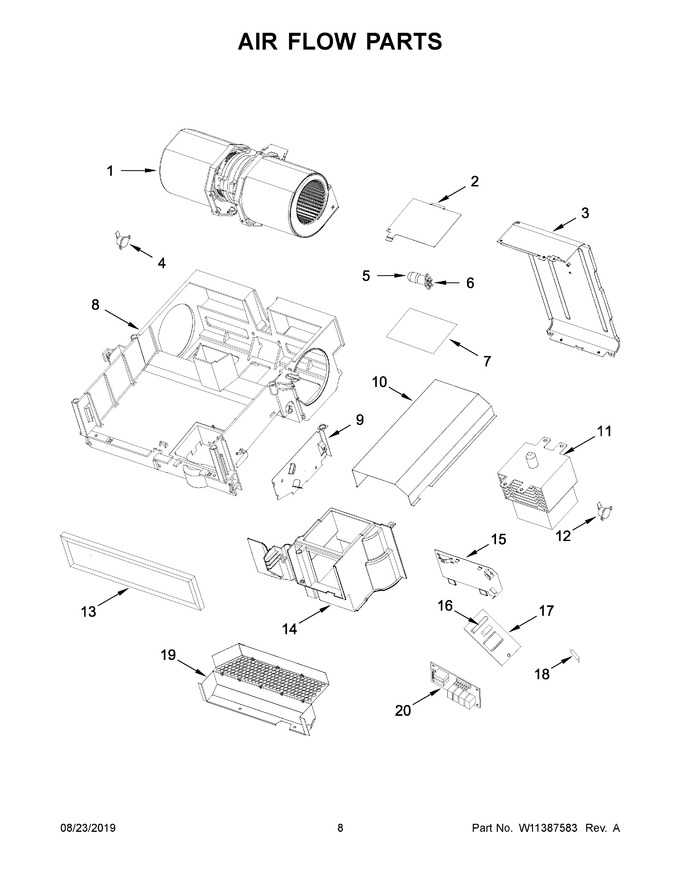

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662632 | Motor, Hood (Replaces: W11263457) |
|
$ 136.16 | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | W10533114 | Deflector, Air |
|
- | |||||
| 4 | W10557536 | Sensor, Humidity |
|
$ 109.12 | |||||
| 5 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 6 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 7 | W10531724 | Glass, Lamp |
|
Immediately | $ 29.90 | ||||
| 8 | W11268279 | Baseplate, Air Guide |
|
- | |||||
| 9 | W11293488 | Cover, Right Duct |
|
$ 72.07 | |||||
| 10 | W10533111 | Outlet, Cavity (back) |
|
- | |||||
| 11 | W10818686 | Magnetron (Replaces: W10754514) |
|
Immediately | $ 221.27 | ||||
| 12 | W10598693 | Thermostat, Magnetron |
|
$ 55.94 | |||||
| 13 | W11383759 | Filter, Charcoal (Replaces: W11268278) |
|
Immediately | $ 12.41 | ||||
| 14 | W10892381 | Outlet, Cavity (front) |
|
- | |||||
| 15 | W11288585 | Bracket, Pcba |
|
- | |||||
| 16 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 17 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 18 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| 19 | W10657641 | Shield, Finger |
|
- | |||||
| 20 | W11133799 | Pcba, Hood Control |
|
$ 41.21 |
