SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer,baskets


05 - Fresh Food Door


07 - Cabinet

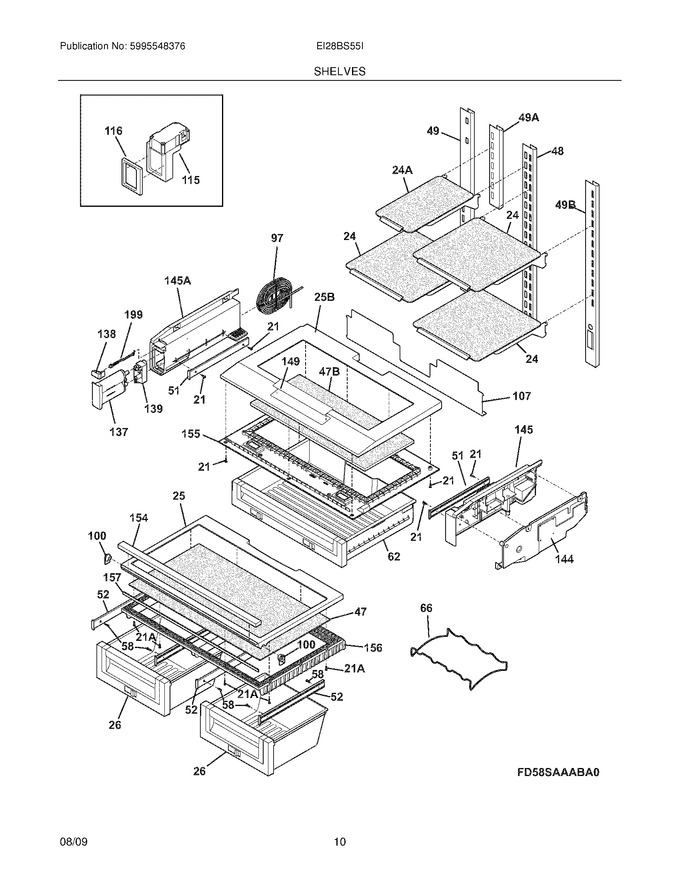

09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	241953902		Screw,no.8 - 18 X .380   (Replaces: 7241953902)			Immediately	$ 17.11
24	7241839901		Shelf-glass,formed		Appelez-nous	-
25	7241802202		Frame-crisper Cover,upper		Appelez-nous	-
26	7241772801		Pan-crisper		Appelez-nous	-
47	7241768801		Insert-pan Cover,glass		Appelez-nous	-
48	7241774201		Channel-shelf Mtg,center		Appelez-nous	-
49	7241773801		Channel-shelf Mtg,side ,(2) ,lh		Appelez-nous	-
51	7241816102		Slide-deli		Appelez-nous	-
52	7241769001		Slide-crisper Cover		Appelez-nous	-
58	7241941202		Screw,8-18 X 3/8		Appelez-nous	-
62	7241827204		Pan-deli		Appelez-nous	-
66	241748901		Rack-wine   (Replaces: 7241748901)				$ 77.97
97	7241821201		Water Tank		Appelez-nous	-
100	241768601		Support-crspr Cover   (Replaces: 7241768601)				$ 19.13
107	7241925901		Cover-water Tank		Appelez-nous	-
137	EWF01C		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 7241932301)			Immediately	$ 75.59
138	7241885901		Button-filter Release		Appelez-nous	-
139	240396002		Base-water Filter   (Replaces: 7240396002)			Immediately	$ 119.66
144	7241803902		Cover-deli Air Control		Appelez-nous	-
145	7241803802		Housing-deli Air Control		Appelez-nous	-
149	7241974501		Insert-pan Cover,plastic		Appelez-nous	-
154	241879902		Trim-crisper Cover   (Replaces: 7241879901)				$ 39.44
155	7241803402		Frame-deli Cover,lower		Appelez-nous	-
156	7241872001		Frame-crisper Cover,lower		Appelez-nous	-
157	7241872201		Beam-crisper Cover		Appelez-nous	-
199	7240397501		Rod		Appelez-nous	-
21A	7241953901		Screw,no.8-18		Appelez-nous	-
24A	7241839903		Shelf-glass,formed		Appelez-nous	-
25B	7241803302		Frame-deli Cover,upper		Appelez-nous	-
47B	7241967401		Glass,2 Pane Insulatd		Appelez-nous	-
49A	7241865701		Channel-shelf Mtg,center ,icemaker Shelf		Appelez-nous	-
49B	7241774301		Channel-shelf Mtg,side ,rh		Appelez-nous	-
F137	7240526901		O-ring,wtr Filter Base		Appelez-nous	-
F139	7241858401		Screw,no.6 X 1/2 Hilo		Appelez-nous	-
F145	7241788702		Support,rail		Appelez-nous	-
F199	7240398401		Spring-filter Release Rod		Appelez-nous	-
F24A	7241809204		· Trim-shelf,hand Grip		Appelez-nous	-
F47B	75304469950		Sealant,rubber Silicone		Appelez-nous	-
NI	7241615474		Energy Guide		Appelez-nous	-
NI	7242010901		Roller Assy,deli Pan		Appelez-nous	-
NI	7241809203		· Trim-shelf,hand Grip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
