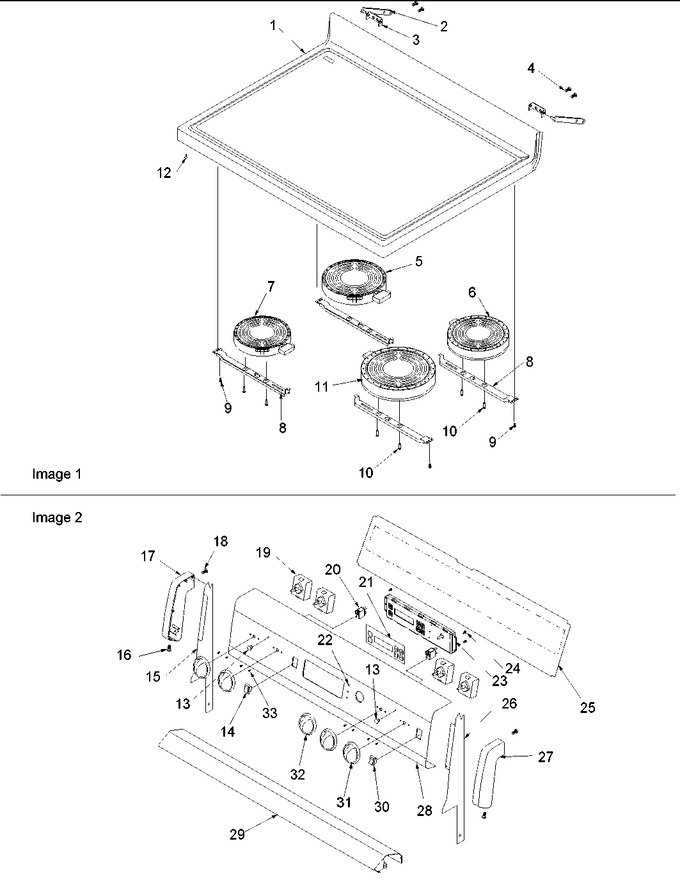

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31722311C | Assy, Top/glass (bsq) |
|
- | |||||
| 2 | Y0315931 | Pin, Hinge |
|
- | |||||
| 3 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 4 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410) |
|
Immediately | $ 12.65 | ||||
| 5 | W10823710 | Element, Ribbon 8`` 240v/2000w (Replaces: 31939101) |
|
Immediately | $ 330.41 | ||||
| 6 | W10823699 | Element, Ribbon 7`` 240v/1500w (Replaces: 31939001) |
|
Immediately | $ 145.67 | ||||
| 7 | 31938901 | Element, Ribbon 6`` 240v/1200w |
|
- | |||||
| 8 | 31720701 | Bracket, Element |
|
- | |||||
| 9 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701) |
|
Immediately | $ 12.65 | ||||
| 10 | 31750715 | Screw, Shoulder Ab 6-20 X .825 |
|
- | |||||
| 11 | 31939201 | Element, Ribbon (2500 Watts) |
|
- | |||||
| 12 | 31717001 | Spacer, Snap-in |
|
- | |||||
| 13 | Y0316265 | Lens, Indicator |
|
- | |||||
| 14 | 31847604C | Switch,rocker(bisque) |
|
- | |||||
| 15 | 315877C | Bkgd Support,lh(bisque) |
|
- | |||||
| 16 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 17 | 315843C | End Cap, Lh(bisque) |
|
- | |||||
| 18 | 31750420 | Screw, No.8-32 X3/8 P Trs Hd Lp |
|
- | |||||
| 19 | 31926702 | Switch, Infinite Csi (b) |
|
- | |||||
| 19 | 31926703 | Switch, Infinite Csi (r) |
|
- | |||||
| 19 | 31926701 | Switch, Infinite Csi (y) |
|
- | |||||
| 20 | 31722801 | Light, Indicator (125v) |
|
- | |||||
| 21 | 31777908C | Overlay,mylar(bisque) |
|
- | |||||
| 22 | 31780501 | Lens, Ind Light (mini Snap In) |
|
- | |||||
| 23 | 31771301 | Krc Electric |
|
$ 367.01 | |||||
| 24 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 25 | 0315887 | Cover, Upper Rear |
|
- | |||||
| 26 | 315876C | Bkgd Support,rh(bisque) |
|
- | |||||
| 27 | 315841C | End Cap, Rh(bisque) |
|
- | |||||
| 28 | 31779438C | Pnl, Bkgd Artc712e |
|
- | |||||
| 29 | 31722704B | Shield, Bkgd Trim Heat |
|
- | |||||
| 30 | 301491C | Switch,rocker(bisque) |
|
- | |||||
| 31 | 31932304C | Knob, Infinite Switch (bsq) |
|
- | |||||
| 32 | 31760310C | Knob, Thermostat (bsq) |
|
- | |||||
| 33 | 31750714 | Screw, No.8-32 X 1/4 |
|
- | |||||
| 99 | 31750426 | Screw, No.8-18 X 7/8 Pph |
|
- | |||||
| NOTE: | Note: Ribbon Element Limiters Are Not Replaceable. |
|
- | ||||||
| NI | 31918001 | Harness, Radiant R.h. |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701) |
|
Immediately | $ 12.65 | ||||
| NI | 31921101 | Harness, Bkgrd Conv |
|
- | |||||
| NI | 31914901 | Harness, Radiant L.h. |
|
- |
