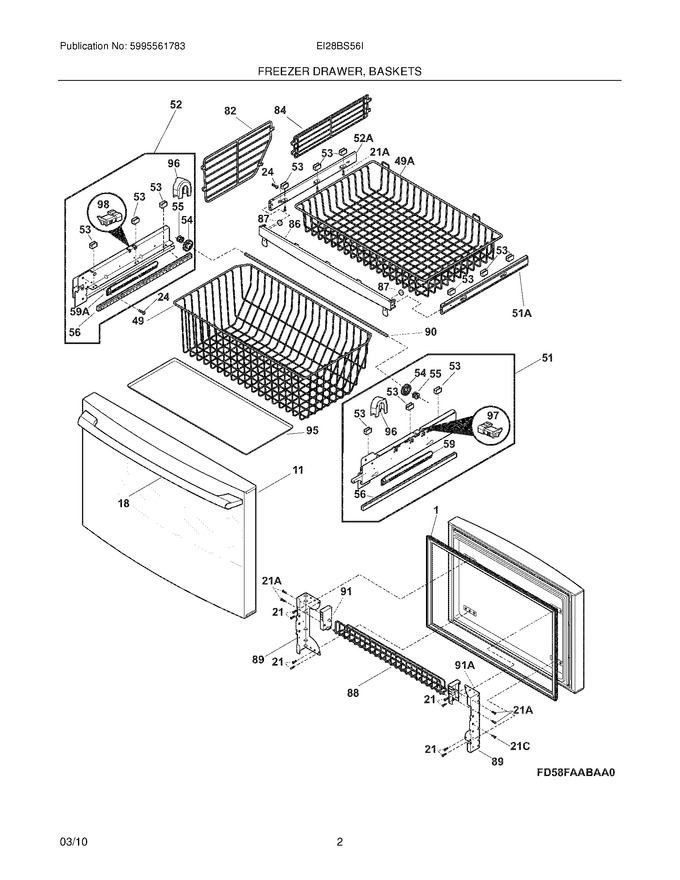

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987902		Drawer,freezer				$ 261.77
18	241881323		Handle-frzr Drawer,black				$ 206.20
21	240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white				$ 12.76
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242026801		Basket-frzr,lower				$ 252.95
51	241883604		Slide Assembly,basket Lower ,rh ,freezer Drawer   (Replaces: 241883601)			Immediately	$ 287.06
52	241883704		Slide Assembly,basket Lower ,lh ,freezer Drawer   (Replaces: 241883701)				$ 350.37
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	241762801		Rack,drawer Travel				$ 226.05
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
82	242026901		Divider,basket				$ 61.81
84	241780904		Divider,basket ,upper   (Replaces: 241780901)				$ 71.29
86	241953202		Bar,stabalizer ,freezer Drawer				$ 165.14
87	241812202		Magnet,freezer Drawer				$ 72.30
88	241824008		Rack-tilt Out,door   (Replaces: 241824002)				$ 123.62
89	241972302		Bracket-freezer Drawer   (Replaces: 241972301)				$ 109.21
90	241770705		Bar,timing   (Replaces: 241770702)				$ 50.66
91	241824102		Cap-door Rack				$ 17.44
95	241770802		Tray,spill Guard		Appelez-nous	-
96	241973501		Cover,pinion ,white				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
21A	241953902		Screw,no.8 - 18 X .380			Immediately	$ 17.11
21C	241899701		Screw-no.10-32 X 3/8 Truss Head,truss Head,no.10-32 X 3/8 ,zinc		Appelez-nous	-
49A	241780802		Basket-frzr,upper				$ 163.12
51A	241894223		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894201)			Immediately	$ 132.53
52A	5304491063		Slide Assembly,basket ,lh ,freezer Drawer   (Replaces: 241894203)				$ 155.21
59A	241979701		Closure,drawer		Appelez-nous	-
91A	241824101		Cap,door Rack ,white				$ 17.44
F1	5304537408		Gasket-frzr Drawer,black ,magnetic   (Replaces: 241778304)			Immediately	$ 86.28
NI	242011101		Pin-lock				$ 15.17
NI	241999901		Guide,divider ,plastic (abs) ,lower				$ 25.10
NI	242039701		Screw				$ 13.46
NI	241999902		Guide,divider ,plastic (abs) ,lower ,lh				$ 21.27
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	241979601		Bumper,rubber				$ 22.68
NI	241601002		Wrench,allen		Appelez-nous	-
