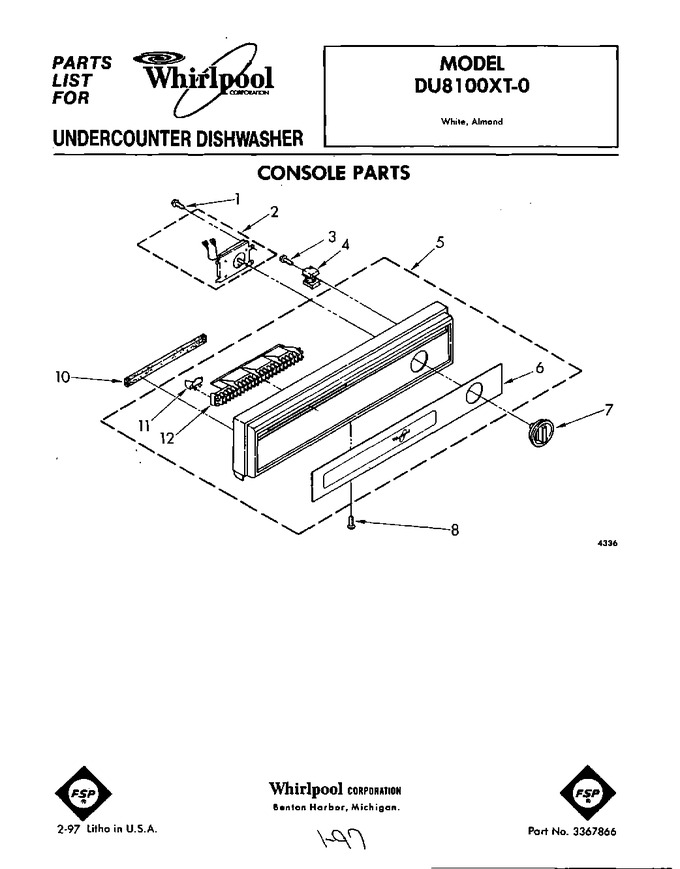

01 - Console
02 - Tub, Literature And Optional
03 - Door
04 - Dishrack
05 - Pump And Motor
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP304231 | Screw, 8-16 X 1/2 Slot Hex Wash Hd (3) (Replaces: 304231) |
|
Immediately | $ 6.98 | ||||
| 2 | 3367210 | Timer |
|
- | |||||
| 3 | 304232 | Screw, 7-18 X 1-3/8 Slot Hex Wash Hd |
|
- | |||||
| 4 | 304409 | Relay, Start |
|
- | |||||
| 5 | 3368116 | Console |
|
- | |||||
| 6 | 3367217 | Insert, Decorative |
|
- | |||||
| 7 | 3367282 | Knob, Timer |
|
- | |||||
| 8 | WP488729 | Screw, 8-18 X 1/2 Phlps Truss Hd Hi-lo (4) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 10 | 719860 | Baffle |
|
- | |||||
| 11 | 304604 | Cover, Grill |
|
- | |||||
| 12 | 304602 | Grill, Vent |
|
- |
