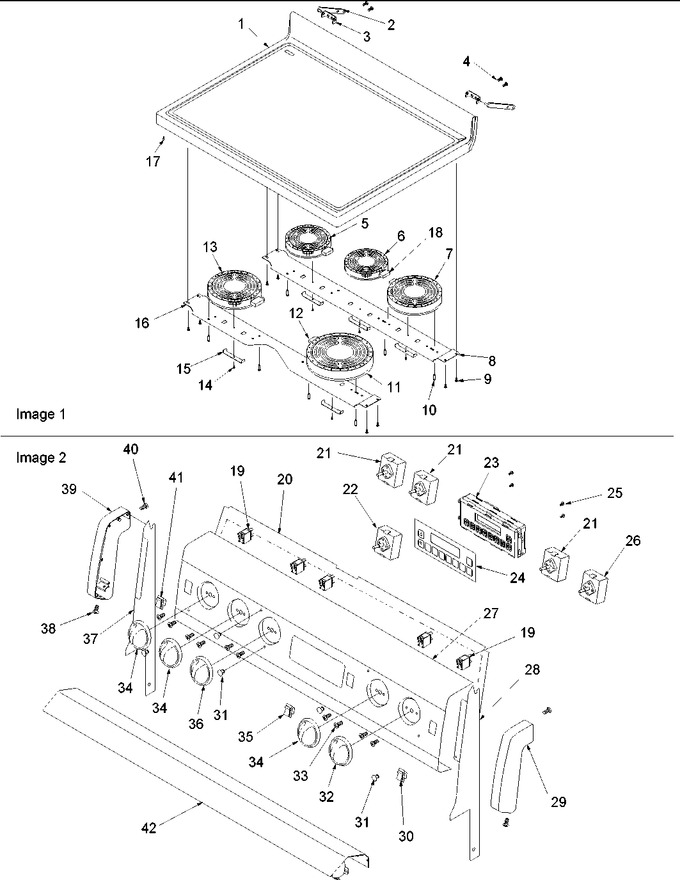

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31921801B		Assy, Top/glass (warm Zone Bla		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
5	W10823699		Element, Ribbon 7`` 240v/1500w   (Replaces: 31939001)			Immediately	$ 145.67
6	31912701		Element, Ribbon (warming Zone)		Appelez-nous	-
7	31938901		Element, Ribbon 6`` 240v/1200w		Appelez-nous	-
8	31921601		Brkt, Elem (rear W/z)		Appelez-nous	-
9	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
11	W10823726		Element, Dual Radiant 6/9``   (Replaces: 31852001)				$ 308.80
12	0316689		Limiter-dual		Appelez-nous	-
13	W10823710		Element, Ribbon 8`` 240v/2000w   (Replaces: 31939101)			Immediately	$ 330.41
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
15	Y0306683		Spring, Element		Appelez-nous	-
16	31921701		Brkt, Elem (front)		Appelez-nous	-
17	31717001		Spacer, Snap-in		Appelez-nous	-
18	31846201		Limiter		Appelez-nous	-
19	31722801		Light, Indicator (125v)		Appelez-nous	-
20	0315887		Cover, Upper Rear		Appelez-nous	-
21	31926701		Switch, Infinite Csi (y)		Appelez-nous	-
21	31926702		Switch, Infinite Csi (b)		Appelez-nous	-
22	31890802		Switch,inf(120p-1241)		Appelez-nous	-
23	Y0315570		Erc3 (electric)		Appelez-nous	-
24	31935801B		Overlay, Mylar Erc (blk)		Appelez-nous	-
25	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
26	WP74011243		Switch, Infinite   (Replaces: 31891202)				$ 115.88
27	31749833B		Pnl, Bkgd 7522 (black)		Appelez-nous	-
28	315876B		Bkgd. Support-rh		Appelez-nous	-
29	WP315841B		End Cap Rh   (Replaces: 315841B)				$ 53.06
30	316160B		Switch, Rocker		Appelez-nous	-
31	Y0316265		Lens, Indicator		Appelez-nous	-
32	31760101B		Knob, Infinite Switch (blk)		Appelez-nous	-
33	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
34	31932301B		Knob, Infinite Switch (blk)		Appelez-nous	-
35	31847601B		Switch, Rocker Illum. (black)		Appelez-nous	-
36	31923501B		Knob, Warm Zone (black)		Appelez-nous	-
37	315877B		Bkgd. Support-lh		Appelez-nous	-
38	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
39	WP315843B		End Cap Lh   (Replaces: 315843B)				$ 52.60
40	31722704B		Shield, Bkgd Trim Heat		Appelez-nous	-
41	Y0063997		Switch, Rocker		Appelez-nous	-
42	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
NI	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	31922001		Harness,radiant L.h.		Appelez-nous	-
NI	31931201		Harness,radiant R.h. Dual		Appelez-nous	-
NI	31750425		Screw, No.8-18 X 3/8 Pph		Appelez-nous	-
NI	31750426		Screw, No.8-18 X 7/8 Pph		Appelez-nous	-
