SELECT A DIAGRAM

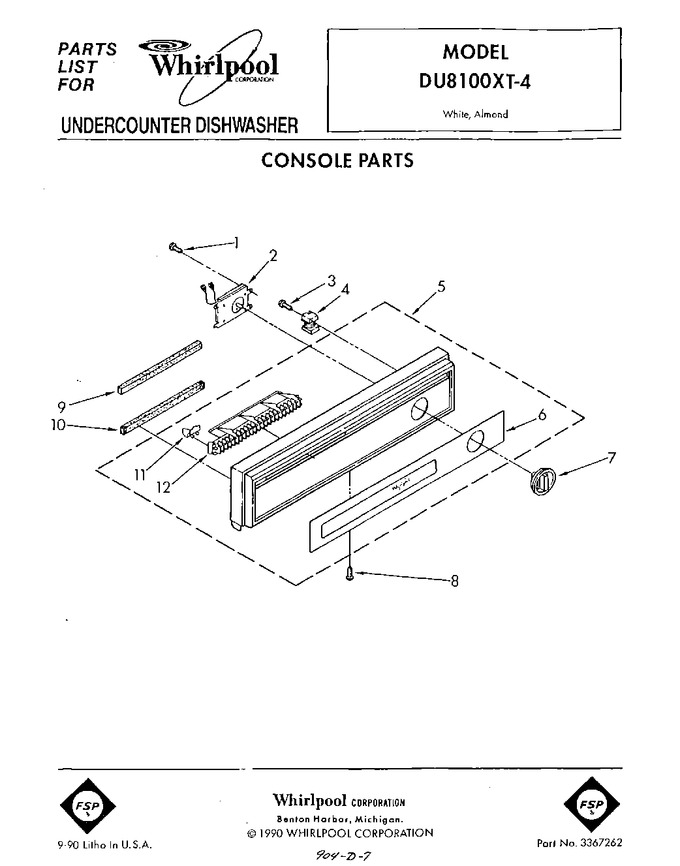

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP304231		Screw, 8-16 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 6.98
2	3367210		Timer		Appelez-nous	-
3	304232		Screw, 7-18 X 1-3/8		Appelez-nous	-
4	304658		Relay, Start		Appelez-nous	-
5	3368116		Console		Appelez-nous	-
6	3367217		Insert, Decorative		Appelez-nous	-
7	3367282		Knob, Timer		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 304234)			Immediately	$ 7.01
9	3368537		Foam, Seal		Appelez-nous	-
10	719860		Baffle		Appelez-nous	-
11	304604		Cover, Grill		Appelez-nous	-
12	304602		Grill, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
