SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer,baskets


05 - Fresh Food Door

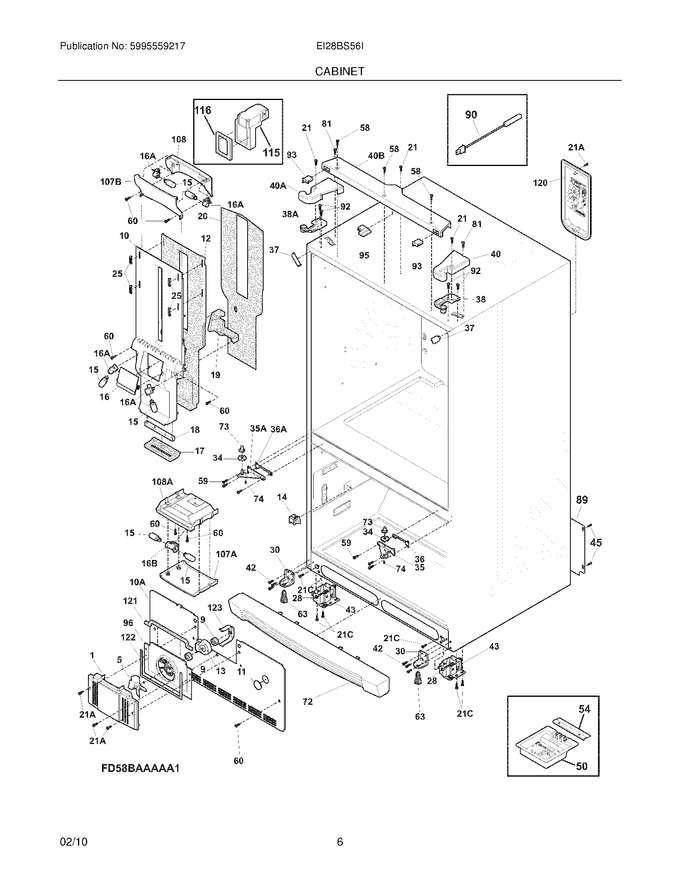

07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241859701		Cover-fan				$ 49.86
9	241518301		Bushing,motor Mounting				$ 66.63
10	241860001		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	241859901		Foam-air Supply		Appelez-nous	-
13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 154.14
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241860501		Cover-damper		Appelez-nous	-
17	241928201		Gasket-air Duct				$ 17.72
18	241928101		Duct-air				$ 8.23
19	241871901		Support-eps Damper				$ 18.43
20	241922901		Cover-air Duct,rear				$ 133.29
21	241732101		Screw,10-32 X 1/2			Immediately	$ 15.60
25	241949501		Clip,air Vent		Appelez-nous	-
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241778701		Bracket-anti Tip				$ 26.54
34	241868301		Washer				$ 31.19
35	241767211		Bracket-lower Hinge,rh ,w/hinge Pin   (Replaces: 241763001)				$ 102.38
36	241868201		Spacer,door ,lower Rh				$ 49.62
37	242161201		Trim-cabinet Corner,white ,(2)   (Replaces: 240337608)			Immediately	$ 2.93
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	5304504485		Cover-upper Hinge,white ,rh   (Replaces: 241778005)				$ 64.40
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500			Immediately	$ 4.55
50	5304478376		Board-main Power   (Replaces: 241996310)				$ 1,070.07
54	241532401		Channel				$ 30.47
58	241500305		Screw   (Replaces: 241853202)				$ 3.03
59	240442708		Screw-no.10-32 X 3/4,white				$ 8.34
60	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	241930303		Grille/kickplate,white				$ 88.83
73	242075701		Cam-lower Hinge				$ 22.75
74	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
81	134154100		Screw,hex Head ,no.10-32 X 3/8   (Replaces: 242025601)				$ 13.46
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 74.03
90	240597220		Sensor   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
93	241835505		Switch-light,white   (Replaces: 241835501)			Immediately	$ 70.16
95	241530501		Sensor,humidity				$ 121.19
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 131.83
108	241971401		Cover-wiring,top Air Duct		Appelez-nous	-
115	5303918899		Damper,motorized   (Replaces: 241518501)			Immediately	$ 73.24
116	241518601		Seal-damper,foam				$ 9.22
121	241860103		Gasket-evap,upper			Immediately	$ 3.73
122	241860117		Gasket-evap,bottom   (Replaces: 241860102)			Immediately	$ 11.21
123	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
10A	241860401		Cover-evap Coil,lower				$ 87.31
16A	240590403		Socket-light,top & Mid   (Replaces: 240590401)				$ 26.54
16B	241622802		Socket-light,frz Light				$ 65.93
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	241763002		Bracket-lower Hinge,white		Appelez-nous	-
36A	241868202		Spacer,door ,lower Lh				$ 23.51
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	5304504484		Cover-upper Hinge,white ,lh   (Replaces: 241778006)				$ 64.40
40B	241862403		Cover-upper Hinge,white ,center				$ 86.18
F107	241971601		Shield-light,frzr				$ 35.65
F107	241971202		Shield-light,top Air Duct   (Replaces: 241971201)				$ 36.41
F108	241971801		Cover-wiring,freezer Light				$ 87.32
F10A	241860104		Gasket-coil Cover			Immediately	$ 29.77
F10A	241860105		Gasket-coil Cover			Immediately	$ 17.87
F120	241956703		Board Assembly,control ,ice Maker		Appelez-nous	-
F14	240505801		Switch-light/lamp				$ 66.63
F16A	241969202		Harness-wiring,top Light				$ 92.84
F16B	241510802		Harness-wiring,frz Light				$ 41.81
F40B	242015901		Harness-hinge Jumper,hinge Jumper				$ 146.71
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	241953904		Screw,no.8-18				$ 10.63
NI	241859801		Cover-eps,damper				$ 8.93
NI	242004801		Insulation-air Duct,foam Strip		Appelez-nous	-
NI	241969201		Harness-wiring,mid-light		Appelez-nous	-
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	241969001		Cap,screw				$ 16.69
NI	242006901		Duct-air,freezer		Appelez-nous	-
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
