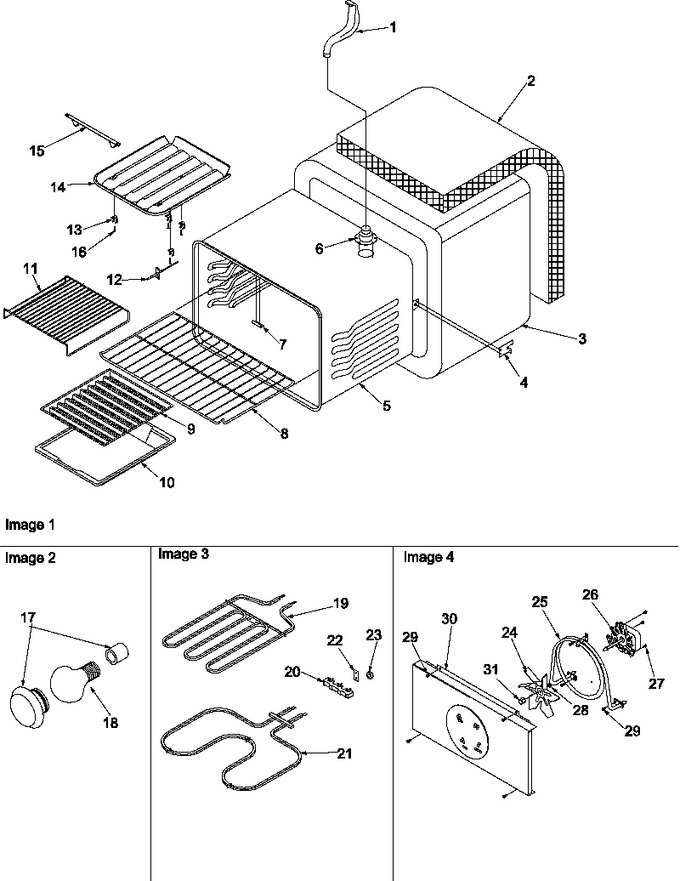

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0316995 | Tube, Vent |
|
- | |||||
| 2 | Y0316949 | Insulation, Rear |
|
- | |||||
| 3 | Y0316948 | Insulation, Wrapper |
|
- | |||||
| 4 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 5 | 316964CG | Oven, Cavity (enamelled) |
|
- | |||||
| 6 | Y0316952 | Smoke Eliminator, Short |
|
- | |||||
| 7 | Y0315022 | Cover, Chip |
|
- | |||||
| 8 | 309988J | Rack, Oven |
|
- | |||||
| 9 | 4396923 | Grid, Broiler (cg) (Replaces: 304451CG) |
|
Immediately | $ 52.04 | ||||
| 10 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 52.04 | ||||
| 11 | Y0306531 | Rack, Broiler |
|
- | |||||
| 12 | WPY0314907 | Sensor, Temperature (Replaces: Y0314907) |
|
$ 201.45 | |||||
| 13 | 0315402 | Bracket, Mounting |
|
- | |||||
| 14 | Y0315403 | Reflector, Broil Element |
|
- | |||||
| 15 | Y0061557 | Bracket, Reflector Mounting |
|
- | |||||
| 16 | Y0097822 | Rivet, Pop |
|
- | |||||
| 17 | WP74011278 | Assy, Oven Light (Replaces: Y0314842) |
|
$ 101.56 | |||||
| 18 | Y0042175 | Bulb, Light |
|
- | |||||
| 19 | WPY0061732 | Element, Broil (240v-3000w) (Replaces: Y0061732) |
|
$ 158.37 | |||||
| 20 | WP8203546 | Terminal Block (Replaces: Y0306378) |
|
Immediately | $ 27.12 | ||||
| 21 | WP77001094 | Element, Bake (240v-2500w) (Replaces: Y0059552) |
|
Immediately | $ 39.58 | ||||
| 22 | WPW10245259 | Strap, Ground (Replaces: Y0306379) |
|
Immediately | $ 31.65 | ||||
| 23 | 0306381 | Hex Nut No.10-32 Nickel |
|
- | |||||
| 24 | Y0307036 | Blade, Fan |
|
- | |||||
| 25 | Y0305245 | Element, Conv Oven(240v-2200w) |
|
- | |||||
| 26 | Y0305246 | Assy, Conv. Fan & Blade |
|
- | |||||
| 27 | Y0309016 | Screw, No.8-18 X 3/8 P Hex Wsh T |
|
- | |||||
| 28 | 0307038 | Washer (zn) |
|
- | |||||
| 29 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| 30 | 309774CG | Cover, Fan (enameled) |
|
- | |||||
| 31 | 0307037 | Nut, Lt Hand Thread |
|
- | |||||
| NI | 31715801 | Wire, Insulation Retainer 100`` |
|
- |
