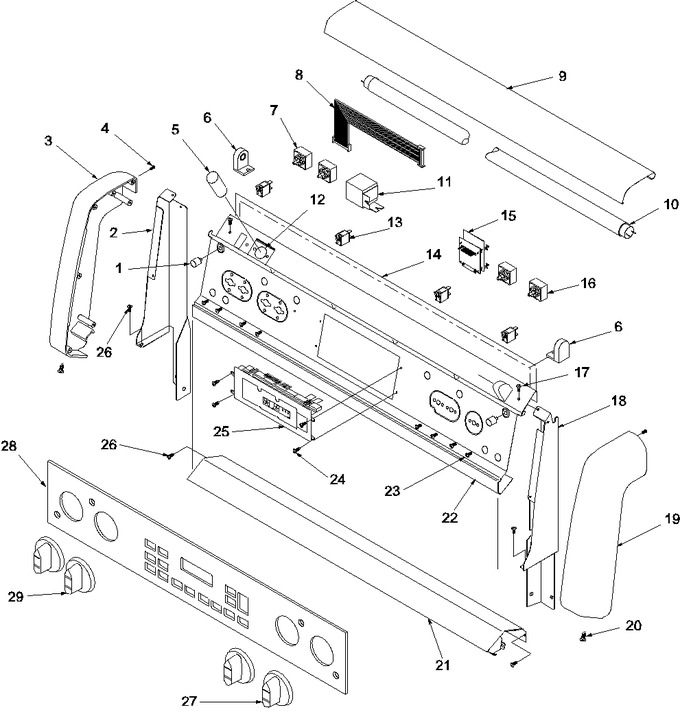

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0314643		Bumper, Rubber		Appelez-nous	-
2	315877L		Bkgd. Support-lh		Appelez-nous	-
3	315844L		End Cap-glass Bkgd Lh		Appelez-nous	-
4	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
5	0071920		Starter, Flourescent		Appelez-nous	-
6	Y0304559		Lamp Holder-floures		Appelez-nous	-
7	WP74011243		Switch, Infinite   (Replaces: 31891202)				$ 115.88
8	0314521		Harness, Wiring		Appelez-nous	-
9	315834L		Cover, Light		Appelez-nous	-
10	WP95292		Lamp, Fluorescent   (Replaces: Y0315927)			Immediately	$ 121.45
11	Y0071869		Ballast		Appelez-nous	-
12	31785501		Socket, Starter (1 Piece)		Appelez-nous	-
13	Y0071820		Indicator Light		Appelez-nous	-
14	0315887		Cover, Upper Rear		Appelez-nous	-
15	Y0314034		Board, Adapter		Appelez-nous	-
16	Y0315855		Switch, Dual Inf.		Appelez-nous	-
17	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
18	315876L		Bkgd. Support-rh		Appelez-nous	-
19	315842L		End Cap-glass Bkgd Rh		Appelez-nous	-
20	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
21	31722704B		Shield, Bkgd Trim Heat		Appelez-nous	-
22	315840L		Mtg.pnl, Bkgd Control		Appelez-nous	-
23	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
24	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
25	Y0316739		Erc, 4800-control		Appelez-nous	-
26	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
27	31760209L		Knob, Dual Infinite (alm)		Appelez-nous	-
28	315833L		Glass,backguard		Appelez-nous	-
29	31760203L		Knob, Infinite Switch (alm)		Appelez-nous	-
NI	Y0315870		Harness, Wire Bkgd (conv)		Appelez-nous	-
NI	Y0315920		Harness, Wire Bkgd (erc-relay		Appelez-nous	-
