01 - Cover

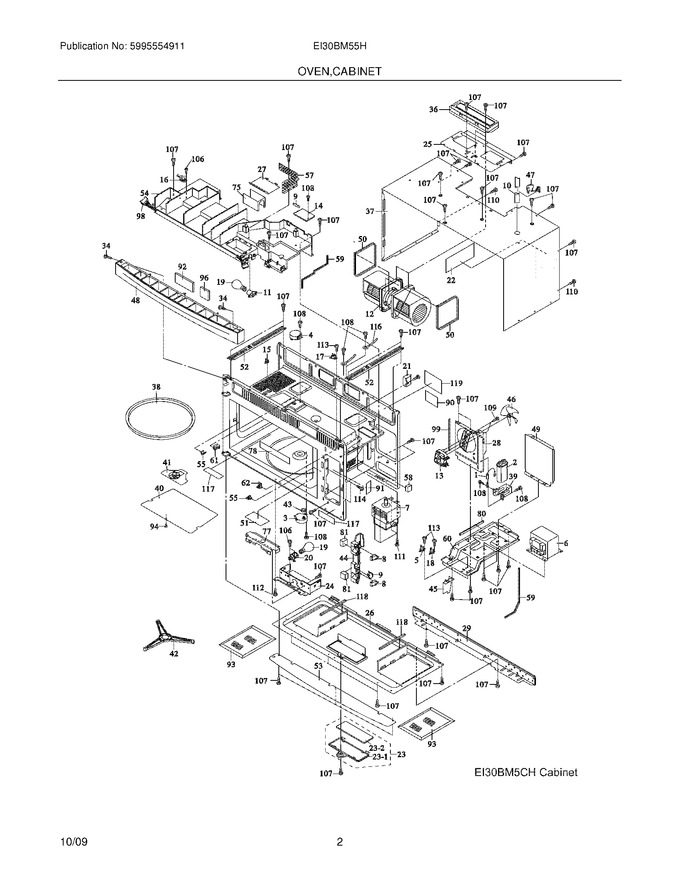

03 - Oven/cabinet
05 - Control Panel/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304464198 | Lamp,oven Light |
|
Immediately | $ 39.04 | ||||
| 22 | 5304472110 | Wiring Diagram,schematic ,label |
|
- | |||||
| 23 | 5304458209 | Lens/frame Assy,lamp ,white |
|
$ 63.00 | |||||
| 24 | 5304472111 | Frame,lens Holder |
|
- | |||||
| 25 | 5304467704 | Plate,rear Stay |
|
$ 23.19 | |||||
| 26 | 5304467706 | Cover,unit Base ,white |
|
- | |||||
| 27 | 5304467707 | Cover,oven Lamp |
|
$ 13.87 | |||||
| 28 | 5304467708 | Duct,cooling Fan |
|
$ 14.02 | |||||
| 29 | 5304467709 | Bracket,unit Mtg Plate ,rear |
|
$ 50.66 | |||||
| 34 | 5304467710 | Screw,3 Mm X 8 Mm |
|
$ 14.18 | |||||
| 36 | 5304464343 | Damper Assembly,exhaust |
|
$ 60.48 | |||||
| 37 | 5304467713 | Cabinet,outer Casing ,white |
|
$ 194.22 | |||||
| 38 | 5304537401 | Tray,turntable ,glass (Replaces: 5304441872) |
|
$ 125.79 | |||||
| 39 | 5304467714 | Retainer,capacitor Strap |
|
- | |||||
| 40 | 5304467715 | Cover,stirrer Fan |
|
$ 25.88 | |||||
| 42 | 5304467717 | Support Assy,turntable ,roller |
|
$ 122.18 | |||||
| 43 | 5304467718 | Bushing,motor Shaft ,turntable |
|
$ 19.14 | |||||
| 44 | 5304440289 | Latch Hook |
|
$ 102.11 | |||||
| 45 | 5304467719 | Cover,wiring Harness |
|
- | |||||
| 47 | 5304467721 | Bushing,grommet ,power Cord |
|
$ 11.08 | |||||
| 49 | 5304467725 | Duct,hood Intake ,right Side |
|
- | |||||
| 50 | 5304467726 | Gasket,hood Fan Motor ,cushion |
|
- | |||||
| 51 | 5304467727 | Lens,lamp Filter |
|
$ 5.11 | |||||
| 52 | 5304467728 | Support,chassis |
|
$ 23.10 | |||||
| 53 | 5304467731 | Deflector,white |
|
- | |||||
| 54 | 5304467732 | Duct,exhaust Hood |
|
$ 22.00 | |||||
| 55 | 5304473092 | Support,rack ,front |
|
$ 19.74 | |||||
| 57 | 5304467734 | Barrier |
|
- | |||||
| 58 | 5304467759 | Cushion,transformer Pad |
|
- | |||||
| 59 | 5304467760 | Cushion,intake Duct ,seal |
|
- | |||||
| 60 | 5304467761 | Plate,base ,right |
|
- | |||||
| 61 | 5304473093 | Support,rack ,left Rear |
|
$ 17.85 | |||||
| 62 | 5304473094 | Support,rack ,right Rear |
|
$ 19.06 | |||||
| 75 | 5304467764 | Shield,heat ,lamp |
|
- | |||||
| 77 | 5304467766 | Reflector,lamp |
|
- | |||||
| 78 | 5304467767 | Label,menu |
|
- | |||||
| 80 | 5304467768 | Cushion,base ,right Side ,seal |
|
- | |||||
| 81 | 5304467769 | Cushion,latch Hook ,pad |
|
$ 9.45 | |||||
| 90 | 5304468229 | Label,ground-caution |
|
- | |||||
| 91 | 5304472114 | Label,caution-monitor |
|
- | |||||
| 94 | 5304467773 | Clip,canoe Type ,stirrer Cover |
|
$ 55.67 | |||||
| 99 | 5304467776 | Cushion,fan Duct ,seal |
|
- | |||||
| 106 | 5304467778 | Screw,3 Mm X 8 Mm |
|
- | |||||
| 107 | 5304502863 | Screw,4 Mm X 8 Mm ,white (Replaces: 5304451552) |
|
$ 10.85 | |||||
| 108 | 5304451550 | Screw,4 Mm X 8 Mm |
|
- | |||||
| 109 | 5304450253 | Screw,4 Mm X 8 Mm |
|
$ 14.89 | |||||
| 110 | 5304451557 | Screw,4 Mm X 12 Mm |
|
- | |||||
| 111 | 5304467780 | Screw,4 Mm X 8 Mm ,tap Tight |
|
$ 13.46 | |||||
| 112 | 5304451553 | Screw,4 Mm X 12 Mm |
|
$ 14.89 | |||||
| 113 | 5304467781 | Screw,3 Mm X 6 Mm |
|
$ 9.87 | |||||
| 114 | 5303319641 | Screw |
|
$ 12.76 | |||||
| 116 | 5304468921 | Holder,wire |
|
- | |||||
| 117 | 5304468226 | Label,caution-dhhs |
|
$ 3.15 | |||||
| 118 | 5304472115 | Cushion,bottom |
|
- | |||||
| 119 | 5304468230 | Label,hwc Caution |
|
- | |||||
| F1 | 5304467670 | Rectifier,high Voltage |
|
$ 55.91 | |||||
| F10 | 5304440028 | Power Cord,electric |
|
$ 119.07 | |||||
| F11 | 5304463785 | Lampholder,socket |
|
$ 43.24 | |||||
| F12 | 5304467696 | Motor,hood Fan |
|
$ 224.01 | |||||
| F13 | 5304467697 | Motor,cooling Fan |
|
$ 75.23 | |||||
| F14 | 5304492543 | Filter,noise ,electronic (Replaces: 5304467698) |
|
$ 81.18 | |||||
| F15 | 5304440032 | Thermal Cutout,oven Cavity |
|
$ 26.99 | |||||
| F16 | 5304463786 | Sensor,humidity ,cook Control |
|
$ 107.94 | |||||
| F17 | 5303319550 | Fuse,magnetron |
|
$ 117.23 | |||||
| F18 | 5304467699 | Thermal Cutout,oven Cavity |
|
$ 28.35 | |||||
| F2 | 5304472108 | Capacitor,high Voltage |
|
$ 68.62 | |||||
| F20 | 5304467700 | Lampholder,socket |
|
$ 47.69 | |||||
| F21 | 5304467701 | Capacitor,lamp |
|
- | |||||
| F23- | 5304458210 | Frame,lens Holder ,white |
|
- | |||||
| F23- | 5303319575 | Lens,cooktop Lamp ,glass |
|
$ 104.94 | |||||
| F3 | 5304467690 | Motor,turntable |
|
- | |||||
| F4 | 5304467691 | Motor,stirrer Fan |
|
$ 57.08 | |||||
| F41 | 5304475705 | Stirrer Assembly |
|
$ 65.63 | |||||
| F46 | 5304467720 | Fan Blade,mag Cooling Fan |
|
$ 17.64 | |||||
| F48 | 5304472113 | Louver Assembly,hood ,white |
|
$ 172.62 | |||||
| F5 | 5304440023 | Thermal Cutout,hood |
|
$ 58.13 | |||||
| F6 | 5304468156 | Transformer,power |
|
$ 210.42 | |||||
| F7 | 5304472109 | Magnetron |
|
$ 189.10 | |||||
| F8 | 5304493153 | Switch,interlock ,primary/door (Replaces: 5304467694) |
|
Immediately | $ 83.38 | ||||
| F9 | 5304467695 | Switch,monitor ,w/ceramic Fuse |
|
$ 50.80 | |||||
| F92 | 5304467772 | Filter,inside Exhaust ,charcoal |
|
$ 13.18 | |||||
| F93 | 5303319568 | Filter-grease, (2) |
|
Immediately | $ 37.52 | ||||
| F96 | 5304467774 | Filter,air ,charcoal |
|
$ 17.22 | |||||
| F98 | 5304467775 | Wiring Harness,control-b |
|
$ 49.83 |
