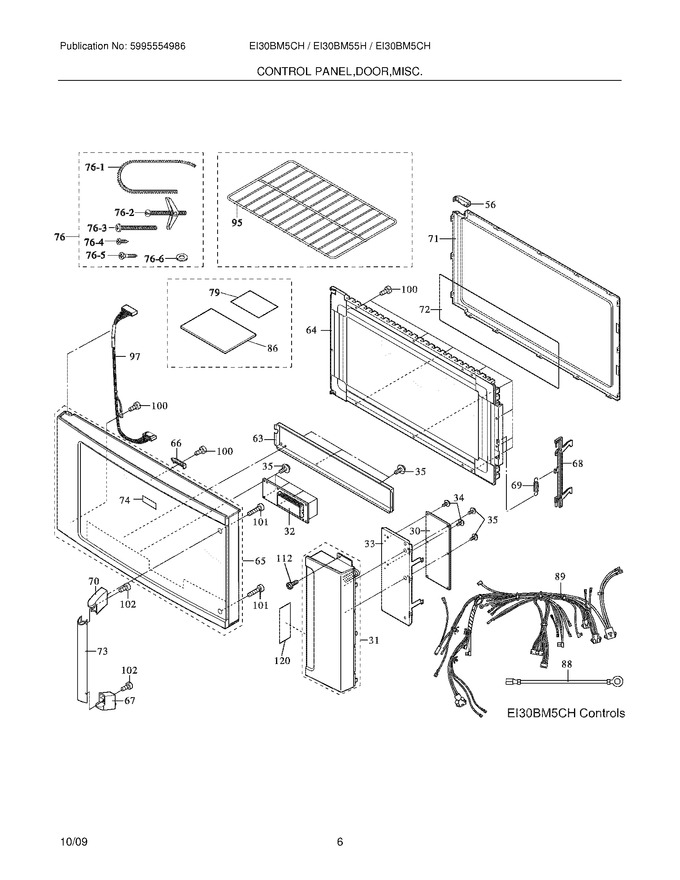

05 - Control Panel/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304467783		Cover,power Unit ,stainless ,rs				$ 243.29
33	5304467787		Panel,control Mount				$ 37.24
34	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
35	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
56	5304463156		Door Stop				$ 32.56
63	5304467788		Cover,control Display				$ 31.77
64	5304467789		Panel,inner Door ,black				$ 207.64
65	5304467790		Frame Assembly,door ,stainless				$ 358.92
66	5304467794		Clip,glass Retainer ,door				$ 15.96
67	5304477330		End Cap,handle ,stainless ,lower   (Replaces: 5304467795)				$ 43.62
68	5304467798		Latch,door				$ 33.86
69	5304440316		Spring,door Latch			Immediately	$ 61.00
70	5304477353		End Cap,handle ,stainless ,upper   (Replaces: 5304467799)				$ 52.78
71	5304467802		Frame,choke Cover ,inner Door				$ 89.85
72	5304467803		Seal,door ,film				$ 24.53
73	5304467804		Handle,door ,stainless				$ 85.05
74	241873301		Badge,nameplate ,stainless   (Replaces: 5304467807)				$ 11.15
76	5304464349		Hardware Kit,installation   (Replaces: 5304467765)			Immediately	$ 57.11
79	5304467834		Recipe Card		Appelez-nous	-
86	5304467832		Template,installation ,top				$ 19.52
86	5304467833		Template,installation ,wall		Appelez-nous	-
95	5304463180		Rack,microwave Oven ,wire				$ 123.33
100	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
101	5304467810		Screw,4 Mm X 30 Mm				$ 64.12
102	5304467780		Screw,4 Mm X 8 Mm ,tap Tight				$ 13.46
112	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
120	5304468232		Label,user Caution		Appelez-nous	-
F30	5304467782		Control Board,printed Circuit		Appelez-nous	-
F32	5304467786		Display,time ,digital				$ 234.60
F76-	5304502863		Screw,4 Mm X 8 Mm ,white   (Replaces: 5304451552)				$ 10.85
F76-	5304453723		Screw,5mm X 35mm				$ 13.28
F76-	5304453724		Washer				$ 12.68
F76-	5304453895		Screw,5mm X 85mm				$ 16.68
F76-	5303318762		Screw,toggle				$ 11.71
F76-	5303318761		Sleeve,power Cord ,grommet				$ 25.05
F88	5304467828		Wire,ground		Appelez-nous	-
F89	5304472112		Wiring Harness,main		Appelez-nous	-
F97	5304467830		Wiring Harness,control-a ,w/ground Wire				$ 109.16
