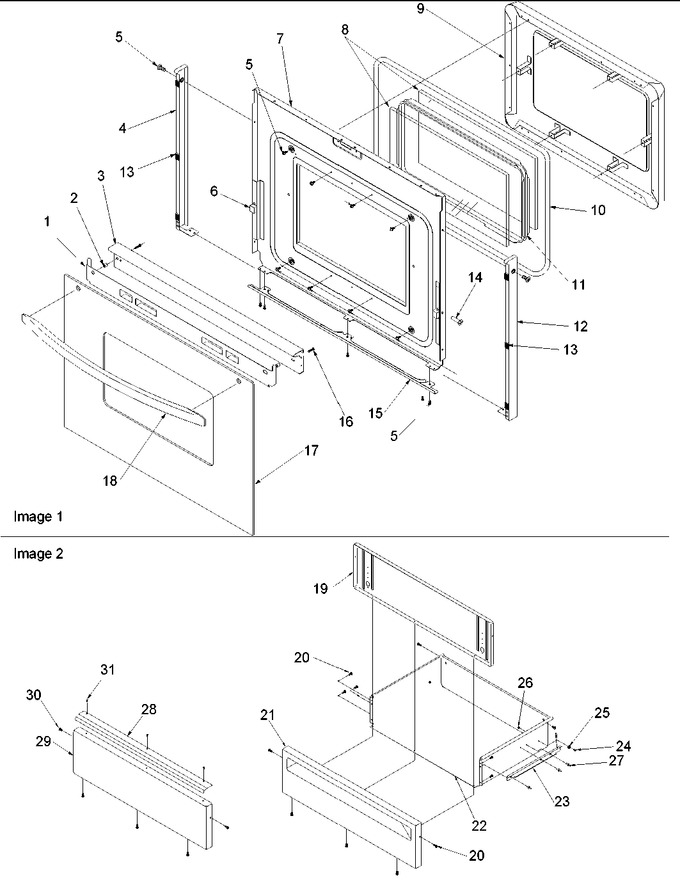

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31833201		Assy, Glass Heat Shield		Appelez-nous	-
2	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
3	31782105C		Trim,door Top(bisque)		Appelez-nous	-
4	309458C		End Cap, Lt (bsq)		Appelez-nous	-
5	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
6	Y0309627		Bumper, Rubber		Appelez-nous	-
7	317028CG		Backer, Oven Door (elec)		Appelez-nous	-
8	Y0317019		Glass, Door		Appelez-nous	-
9	317021CG		Pad, Oven Door		Appelez-nous	-
10	31715902		Gasket, Oven Door (67``)				$ 13.97
11	Y0317020		Frame, Window Pack		Appelez-nous	-
12	309457C		End Cap, Rt (bsq)		Appelez-nous	-
13	0043184		Tape, Foam		Appelez-nous	-
14	Y0302648		Rivet, Pop		Appelez-nous	-
15	309460C		Support, Glass (bsq)		Appelez-nous	-
16	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
17	315944C		Glass,door(bisque)		Appelez-nous	-
18	31689505C		Handle, Oven Door (bsq)		Appelez-nous	-
19	31930601B		Liner, Drawer Panel (blk)		Appelez-nous	-
20	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
21	309177C		Panel, Drawer (chr)		Appelez-nous	-
22	31733502W		Drawer, Storage (wht)		Appelez-nous	-
23	31733301		Track, Storage Drawer		Appelez-nous	-
24	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
25	31733401		Roller, Drawer				$ 5.75
26	M0282009		Nut   (Replaces: 31750128)				$ 12.06
27	Y0097822		Rivet, Pop		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	Y0309772		Insulation,oven Door		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65

    View Diagram in Separate Window       Print Part List
