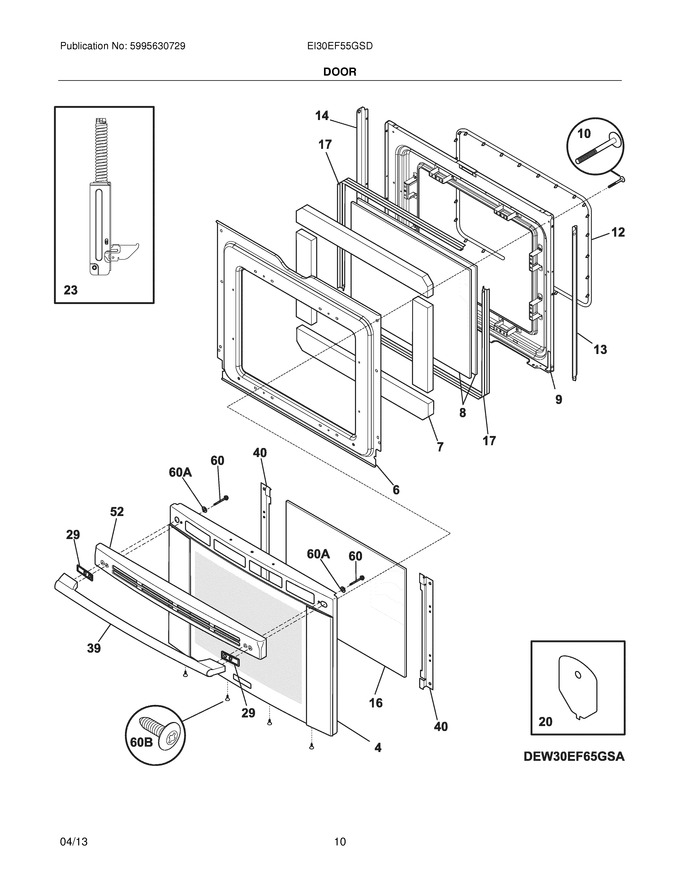

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316538310		Panel Assembly,door Glass ,w/badge ,outer,w/trim & Tape				$ 287.68
6	316503800		Shield,wool				$ 106.89
7	316513000		Insulation,oven Door				$ 81.50
8	316502500		Glass,door ,inner ,(2)			Immediately	$ 115.65
9	316503601		Liner,oven Door ,cobalt				$ 160.49
10	316516801		Screw,truss Hd ,10-24 X 3.5 ,(2)				$ 10.92
12	316405000		Seal,oven Door   (Replaces: 316405001)			Immediately	$ 179.17
13	316502702		Trim,door Filler ,black ,rh		Appelez-nous	-
14	316502703		Trim,door Filler ,black ,lh		Appelez-nous	-
16	316502601		Glass,door ,airwash   (Replaces: 316502600)			Immediately	$ 207.85
17	5304503172		Spacer,door Glass ,(2)   (Replaces: 316502101)				$ 25.79
20	316533801		Plate,distribution ,load			Immediately	$ 5.67
23	316508701		Hinge Assembly,door ,yellow ,(2)		Appelez-nous	-
29	316505401		Spacer,handle ,gray ,(2)				$ 18.17
39	241761001		Handle,door ,stainless		Appelez-nous	-
40	316530401		Bracket,airwash Glass ,(2)		Appelez-nous	-
52	316501402		Cap,door ,stainless		Appelez-nous	-
60	316433303		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513300)			Immediately	$ 31.17
60A	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316525700		Screw,hinge Mtg ,10-32 X 5/16 ,(4)				$ 8.56
NI	316433607		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
